flowIPM 1B (CIP)
Basic module information
|Product line:||flowIPM 1B (CIP)|
|Product status:||Series production|
|Break down voltage:||600 V|
|Nominal chip current rating:||10 A|
|Standard Packing Quantity:||100|
|Module datasheet:||PDF, 2 MB|

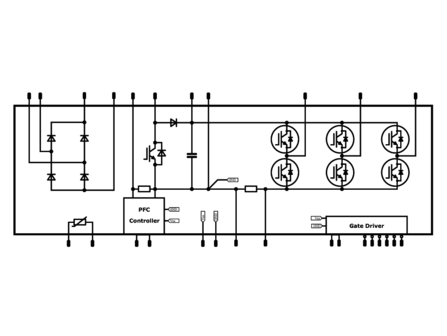

- Integrated PFC controller
- Gate Drive Circuit including complete Bootstrap Circuit
- Integrated DC capacitor
- Inverter Shunt
- PFC Shunt
- Temperature sensor
|Chip technology (main switch):||IGBT RC|
- Optimised collector emitter saturation voltage and forward voltage for low conduction losses
- Reverse conductive IGBT technology
- Smooth switching performance leading to low EMI levels
|Base isolation (e.g. ceramic):||Al2O3|
|Electrical interconnection:||Solder pin|
|Module simulation data available:||On demand|

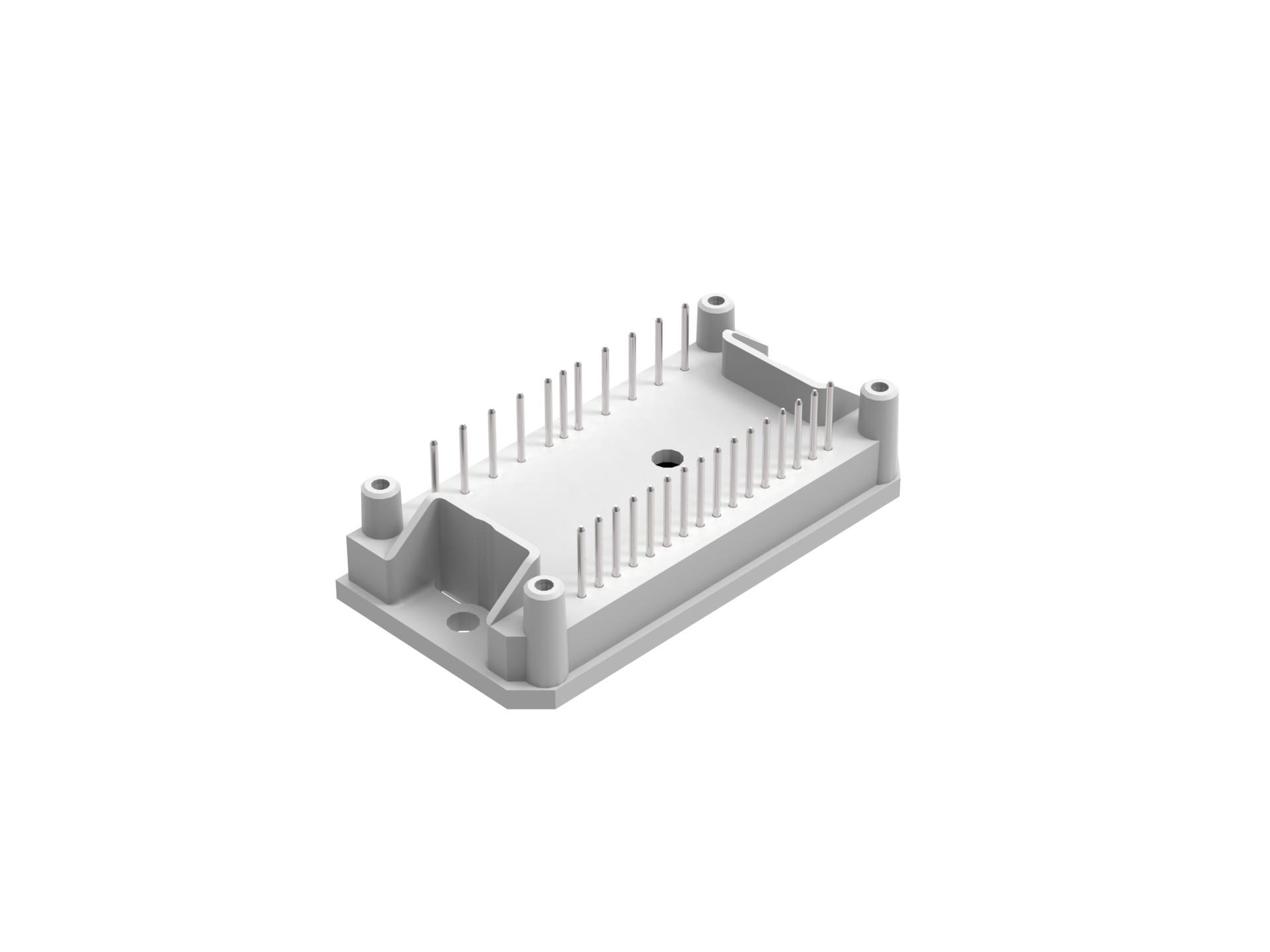

Housing related details
|Module housing:||flow 1B|
|Mechanical connection to the PCB:||4 towers|
|Footprint:||72 mm x 36 mm|
- Ceramic substrate for Thick-film based designs
- Convex shaped substrate for superior thermal contact
- Thermo-mechanical push-and-pull force relief
- Solder pin
PDF, 2 MB
The handling instruction gives information during the design phase of the application and for usage in the production.
To ensure a proper long term stability and reliability of the power module in the application details about the PCB requirements, heat sinks and thermal interface material as well as instructions on the assembly process are shown.
PDF, 82 kB
The package data gives information about dimensions of the housing.
3D module outline (STEP)
STP, 406 kB
The 3D step file can be downloaded for the implementation into your CAD system.
Power module datasheet explanation
PDF, 4 MB
Explanation of measurement conditions and data sources used in Vincotech’s power module datasheets.
Product Qualification at Vincotech
PDF, 293 kB
Vincotech’s qualification tests follow the minimum requirements for the series release of power modules described in this document. These tests also apply for release and re-qualification of modified products.
UL (Underwriters laboratories)
Vincotech power modules are recognized by UL (Underwriters Laboratories). The UL Mark indicates that UL has tested representative samples of the product and found it to be compliant with the applicable standard or other requirements with respect to its potential risk of fire, electric shock and mechanical hazards.
PDF, 160 kB
All Vincotech standard power modules comply with the RoHS specification.
