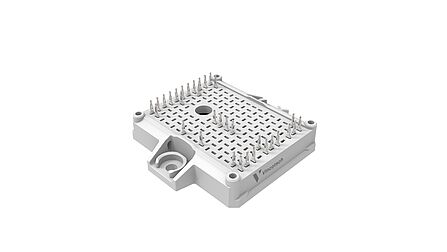

flowPACK E2

Basic module information

Part number: 10-EY126PA100M7-L198F78T
Product line: flowPACK E2
Product status: Series - Preferred
Break down voltage: 1200 V
Nominal chip current rating: 100 A
Standard Packing Quantity: 100
Module datasheet: PDF, 6 MB


Product details

Topology: Sixpack
  • Inverter
  • Open Emitter configuration
  • Temperature sensor
Chip technology (main switch): IGBT M7
  • Easy paralleling
  • Low turn-off losses
  • Low collector emitter saturation voltage
  • Positive temperature coefficient
  • Short tail current
  • Switching optimized for EMC
Base isolation (e.g. ceramic): Al2O3
Electrical interconnection: Press-fit pin

Load this product to the simulation environment to get an overview of its performance.

Simulate this module

Housing related details

Module housing: flow E2
Mechanical connection to the PCB: 4 towers
Footprint: 62.8 mm x 57.7 mm
Height: 12 mm
  • Convex shaped substrate for superior thermal contact
  • Compact housing
  • CTI600 housing material
  • Thermo-mechanical push-and-pull force relief
  • Press-fit pin
  • Reliable cold welding connection

Related documents

  • Handling instruction  PDF, 1 MB

    The handling instruction gives information during the design phase of the application and for usage in the production.
    To ensure a proper long term stability and reliability of the power module in the application details about the PCB requirements, heat sinks and thermal interface material as well as instructions on the assembly process are shown.

  • Packaging datasheet  PDF, 104 kB

    The package data gives information about dimensions of the housing.

  • 3D module outline (STEP)  STP, 7 MB

    The 3D step file can be downloaded for the implementation into your CAD system.

  • Power module datasheet explanation PDF, 4 MB

    Explanation of measurement conditions and data sources used in Vincotech’s power module datasheets.

  • Product Qualification at Vincotech PDF, 293 kB

    Vincotech’s qualification tests follow the minimum requirements for the series release of power modules described in this document. These tests also apply for release and re-qualification of modified products.

  • UL (Underwriters laboratories)  PDF, 652 kB

    Vincotech power modules are recognized by UL (Underwriters Laboratories). The UL Mark indicates that UL has tested representative samples of the product and found it to be compliant with the applicable standard or other requirements with respect to its potential risk of fire, electric shock and mechanical hazards.

  • RoHS  PDF, 155 kB

    All Vincotech standard power modules comply with the RoHS specification.
