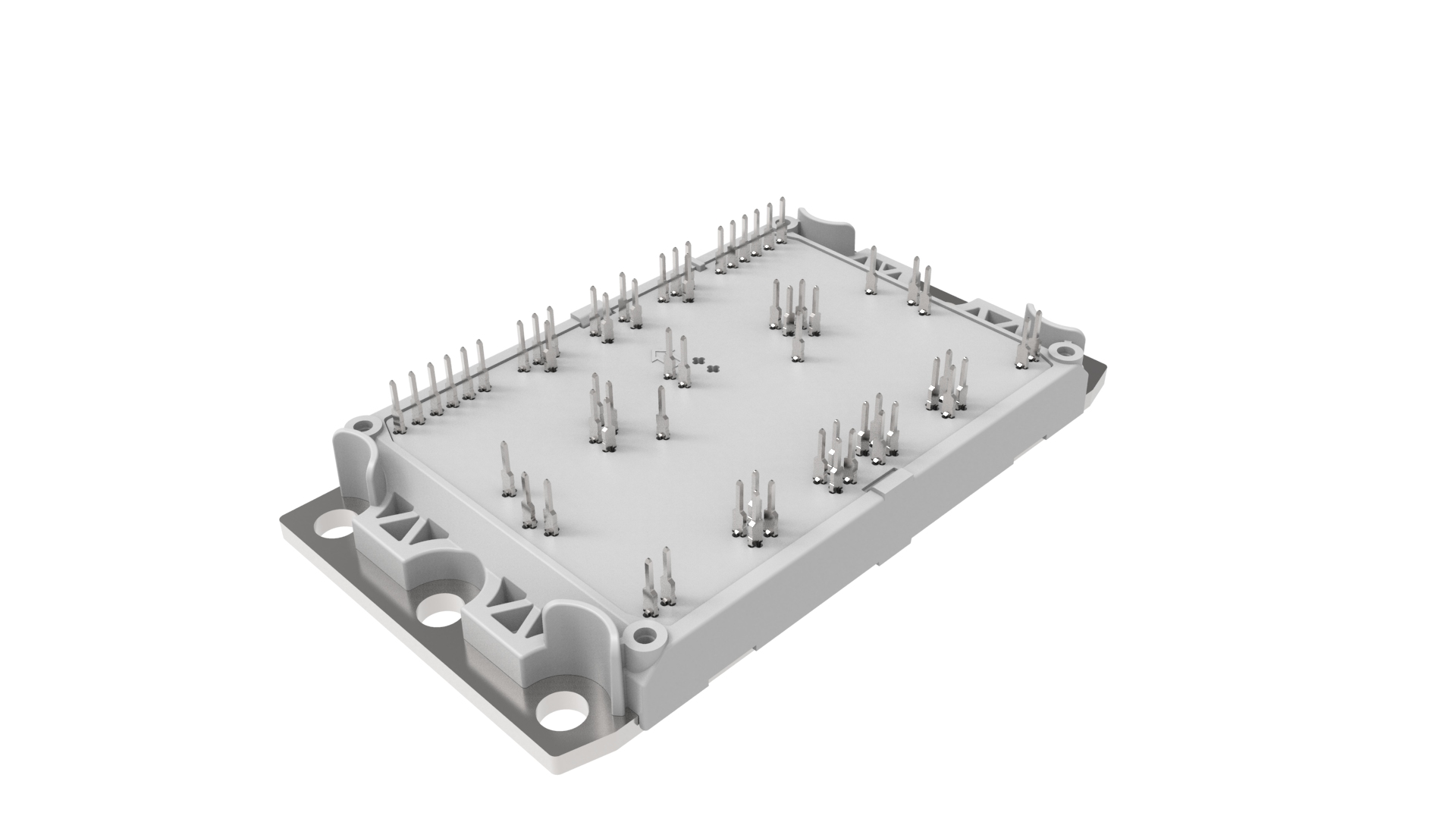

flowBOOST E3BP dual

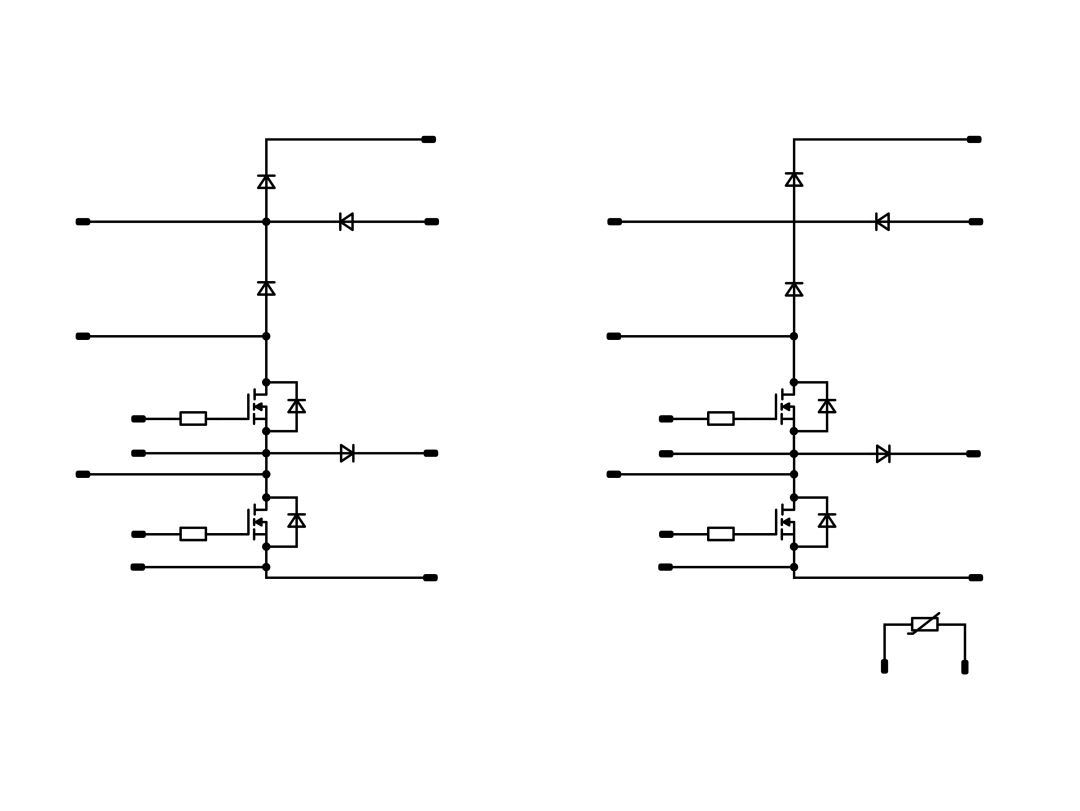

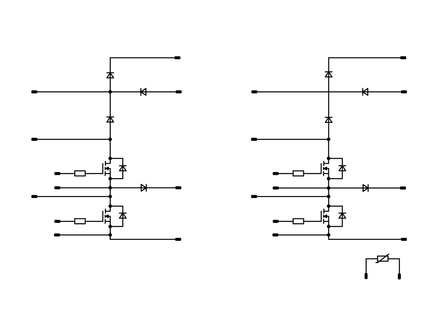

Topology:	Three-level FC Booster

Chip technology (main switch):	SiC MOSFET

Base isolation (e.g. ceramic):	Al₂O₃
Electrical interconnection:	Solder pin
Module simulation data available:	On demand

Module housing:	flow E3BP
Mechanical connection to the PCB:	4 towers
Footprint:	109.6 mm x 59.7 mm
Height:	15 mm

Handling instruction PDF, 2 MB
The handling instruction gives information during the design phase of the application and for usage in the production.
To ensure a proper long term stability and reliability of the power module in the application details about the PCB requirements, heat sinks and thermal interface material as well as instructions on the assembly process are shown.
3D module outline (STEP) STP, 14 MB
The 3D step file can be downloaded for the implementation into your CAD system.
Power module datasheet explanation PDF, 4 MB
Explanation of measurement conditions and data sources used in Vincotech’s power module datasheets.
Product Qualification at Vincotech PDF, 293 kB
Vincotech’s qualification tests follow the minimum requirements for the series release of power modules described in this document. These tests also apply for release and re-qualification of modified products.
UL (Underwriters laboratories) PDF, 652 kB
Vincotech power modules are recognized by UL (Underwriters Laboratories). The UL Mark indicates that UL has tested representative samples of the product and found it to be compliant with the applicable standard or other requirements with respect to its potential risk of fire, electric shock and mechanical hazards.
RoHS PDF, 155 kB
All Vincotech standard power modules comply with the RoHS specification.

30-EX14B2A007WS01-PS29F28Z
