Basic module information
|Product line:||flowBUCK-BOOST 1|
|Product status:||Series production|
|Break down voltage:||650 V|
|Nominal chip current rating:||150 A|
|Standard Packing Quantity:||100|
|Module datasheet:||PDF, 3 MB|
- Kelvin Emitter for improved switching performance
- Temperature sensor

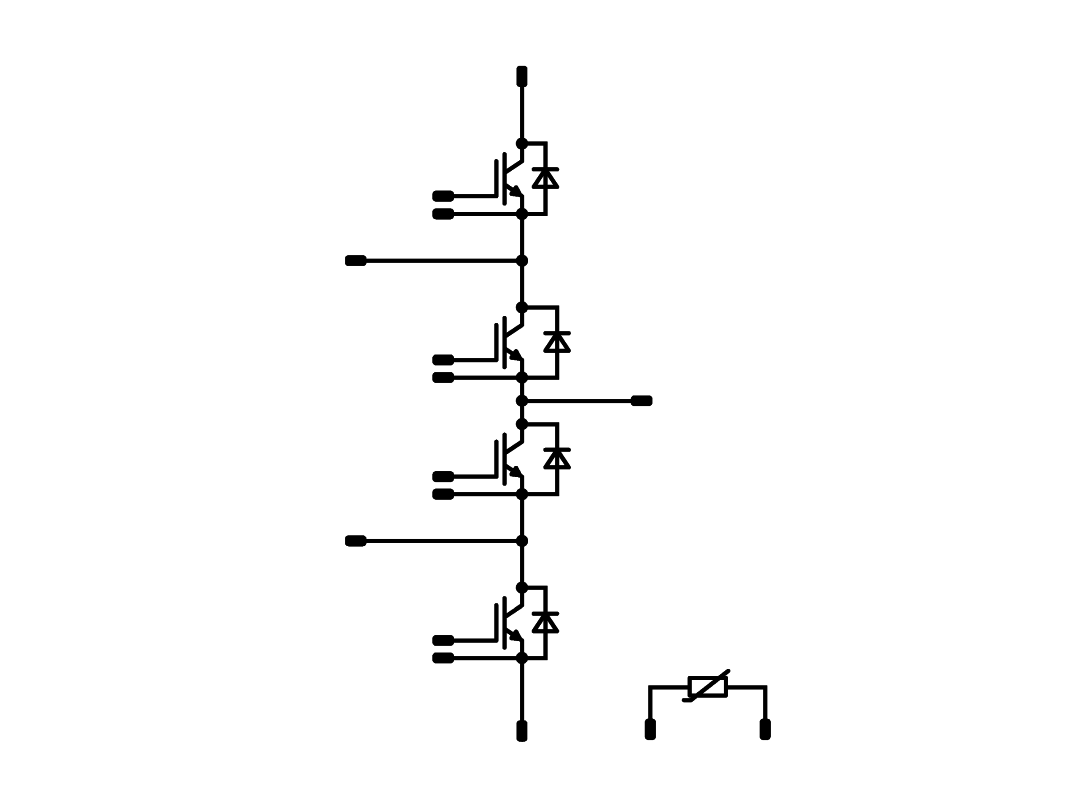

- Symmetrical Buck-Booster
|Chip technology (main switch):||IGBT S5|
- High speed and smooth switching
- Low gate charge
- Very low collector emitter saturation voltage
|Base isolation (e.g. ceramic):||Al2O3|
Housing related details

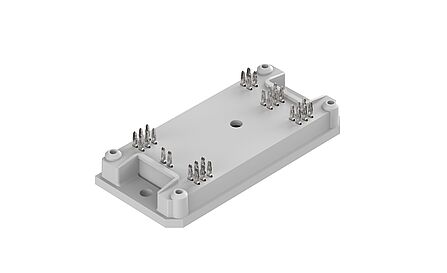

|Module housing:||flow 1|
|Mechanical connection to the PCB:||4 towers|
|Footprint:||82 mm x 37.4 mm|
- Convex shaped substrate for superior thermal contact
- No PCB hole damage to enable reuse
- Reliable cold welding connection to PCB
- Thermo-mechanical push-and-pull force relief
PDF, 3 MB
The handling instruction gives information during the design phase of the application and for usage in the production.
To ensure a proper long term stability and reliability of the power module in the application details about the PCB requirements, heat sinks and thermal interface material as well as instructions on the assembly process are shown.
PDF, 74 kB
The package data gives information about dimensions of the housing.
3D module outline (STEP)
STP, 2 MB
The 3D step file can be downloaded for the implementation into your CAD system.
UL (Underwriters laboratories)
PDF, 309 kB
Vincotech power modules are recognized by UL (Underwriters Laboratories). The UL Mark indicates that UL has tested representative samples of the product and found it to be compliant with the applicable standard or other requirements with respect to its potential risk of fire, electric shock and mechanical hazards.
PDF, 232 kB
All Vincotech standard power modules comply with the RoHS specification.
