RELIABLE ROBUST AND REMARKABLY EFFICIENT

The product to benefit your business suitable for both soft- and hard-switching applications

fastPACK 0 + 1 MOS
fastPACK 0 MOS + fastPACK 1 MOS

fastPACK 0 MOS: 650 V / 80 mΩ
and fastPACK 1 MOS: 650 V / 40 mΩ – 20 mΩ

Now there‘s a place where efficiency, reliability and robustness meet to benefit your business – in Vincotech‘s new fastPACK 0 MOS and fastPACK 1 MOS modules.

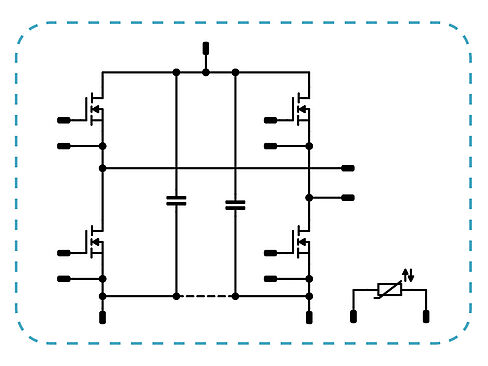

Exceedingly efficient, remarkably reliable and featuring cost-effective H-bridge topology with MOSFETs and integrated capacitors in a rugged housing, these modules are suitable for both soft- and hard-switching applications.

The fastPACK 0 MOS module is rated for 650 V / 80 mΩ and the fastPACK 1 MOS for 40 mΩ – 20 mΩ. Both come with integrated fast body diodes that enable ZVS for improved efficiency. They also provide limited voltage overshoot during hard commutation, thereby improving reliability and reducing EMI.





Main benefits:

  • Integrated fast body diode enables ZVS for improved efficiency
  • Integrated capacitors and limited voltage overshoot during hard commutation for improved reliability and reduced EMI
  • Easier controlling and less design effort due to reduced turn-on and turn-off delay times

Target application:

  • SMPS
  • Welding



fastPACK 0 MOS + fastPACK 0 MOS overview:

Part no. Family Voltage in V Current in A Comment
10-FZ074PA080CR-L622F68 fastPACK 0 MOS 650 20 Solder pin
10-PZ074PA080CR-L622F68Y fastPACK 0 MOS 650 20 Press-fit
10-FY074PA040CR-L581F78 fastPACK 1 MOS 650 40 Solder pin
10-PY074PA040CR-L581F78Y fastPACK 1 MOS 650 40 Press-fit
10-FY074PA020CR-L582F78 fastPACK 1 MOS 650 80 Solder pin
10-PY074PA020CR-L582F78Y fastPACK 1 MOS 650 80 Press-fit



Samples of the ultra efficient fastPACK 0 + 1 MOS modules may be sourced on demand from our usual channels.
