Product News

More Power, Less Space

flowNPC 2 - offers up to 150 kW for 1000 VDC Solar Applications

flowNPC 2

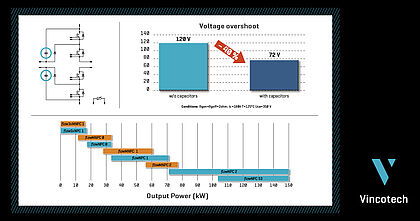

Get the most out of your solar inverter with Vincotech’s new three-level NPC module! The 450 A, 600 A flowNPC 2 module is the path to go for higher output power. The chipset is optimized to maximize the power density, increase efficiency and enhance thermal performance. The integrated on-board capacitors enable higher DC-Link voltages and smaller passive components by reducing up to 40 % the voltage overshoot.

Samples of the new flowNPC 2  are available through our usual channels.

Read more about Vincotech's Solar solutions at:
vincotech.com/cleanerfuture

Main Benefits

  • Higher power density maximizes the ROI
  • Up to 40 % lower voltage overshoot enables higher DC Link voltage
  • Optimized chip combination for Solar applications
  • Solder or Press-fit pins and pre-applied TIM to help reduce production cost

Applications

  • Solar
