COMPACT, THREE-PHASE INVERTER MODULE FOR SOLAR UPS
Catering to the great demand for solar and UPS inverters for three-phase applications with lower power requirements, Vincotech now offers flow3xMNPC 1 modules featuring three MNPCs in one flow 1 housing. These modules enable engineers to design remarkably compact, space-saving inverters with excellent efficiency ratings. To this end, the half-bridge is equipped with high-speed IGBT4 HS3 components, while IGBT3 chips with low saturation voltage and ultra-fast Stealth™ diodes are used in the neutral path.
- Three-phase, mixed voltage NPC topology
- Three-phase application in a single housing
- Designed specifically for solar and UPS applications
- Very high efficient
- Low inductive, 12 or 17 mm flow 1 housing
flow3xMNPC 1 details:
|Part.-No.||Voltage in V||Current in A||Comments|
|10-F112M3A040SH-M749F09||1200||3x 40||18 kW / 17 mm housing|
|10-FY12M3A025SH-M746F08||1200||3x 25||12 kW / 12 mm housing|
|10-F112M3A025SH-M746F09||1200||3x 25||12 kW / 17 mm housing|
|10-FY12M3A040SH-M749F08||1200||3x 40||18 kW / 12 mm housing|

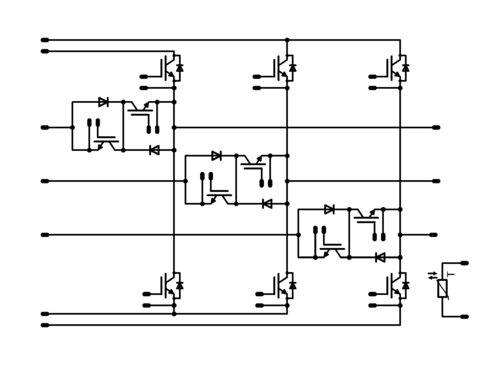

flow3xMNPC 1 schematic

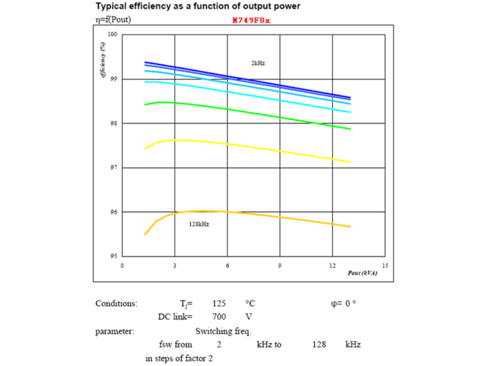

Typical efficiency as a function of output power
The IGBTs in all modules feature Kelvin Emitters to boost switching performance and an NTC for measuring temperature.
Simulation models of the flow3xMNPC 1 are integrated in our simulation tool VincotechISE.
All flow3xMNPC 1 modules come in flow 1 housing with an 82 mm x 38 mm form factor. Press-fit versions are also available on request.
They are in serial production and samples are available via the standard sales channels.
