flowPIM 2

Basic information

• Product line: flowPIM 2
• Product status: Series-Ops
• Standard packaging quantity (pieces): 36

Electrical characteristics

• Voltage: 1200 V
• Current: 50 A

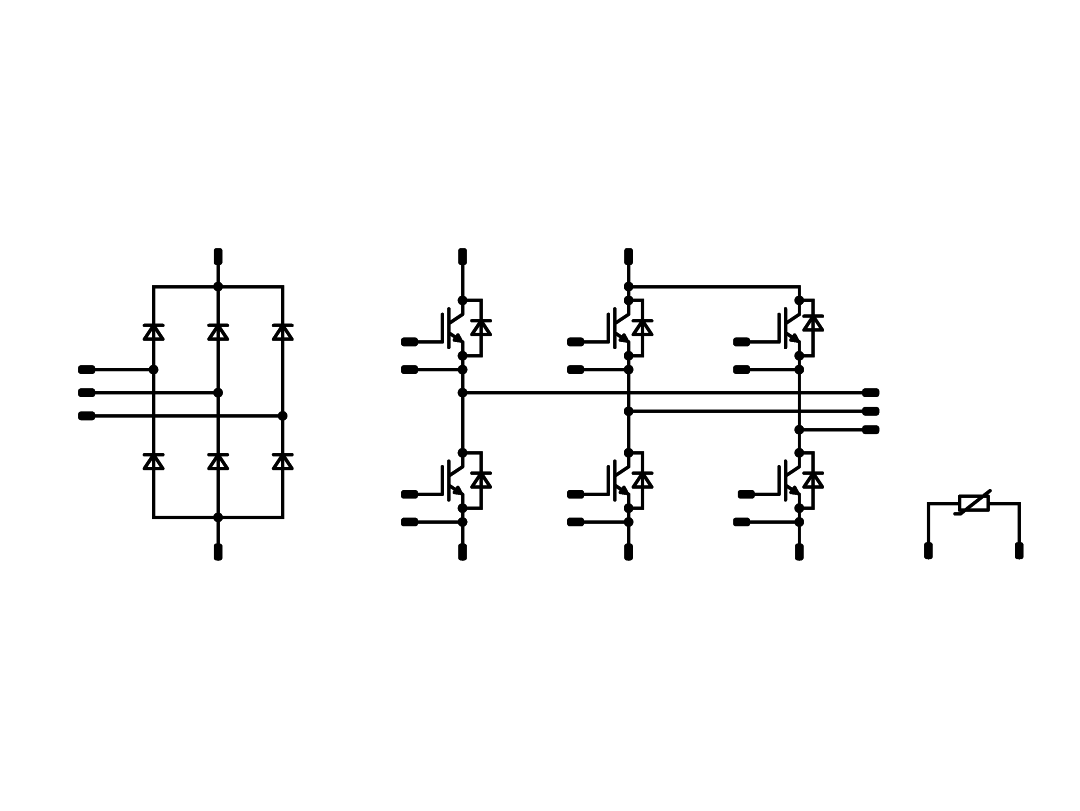

PIM (CIB)

• Converter+Inverter
• Open Emitter configuration
• Temperature sensor

Chip & isolation characteristics

IGBT4

• Easy paralleling
• Low turn-off losses
• Low collector emitter saturation voltage
• Positive temperature coefficient
• Short tail current

Isolation

• Base isolation: Al₂O₃

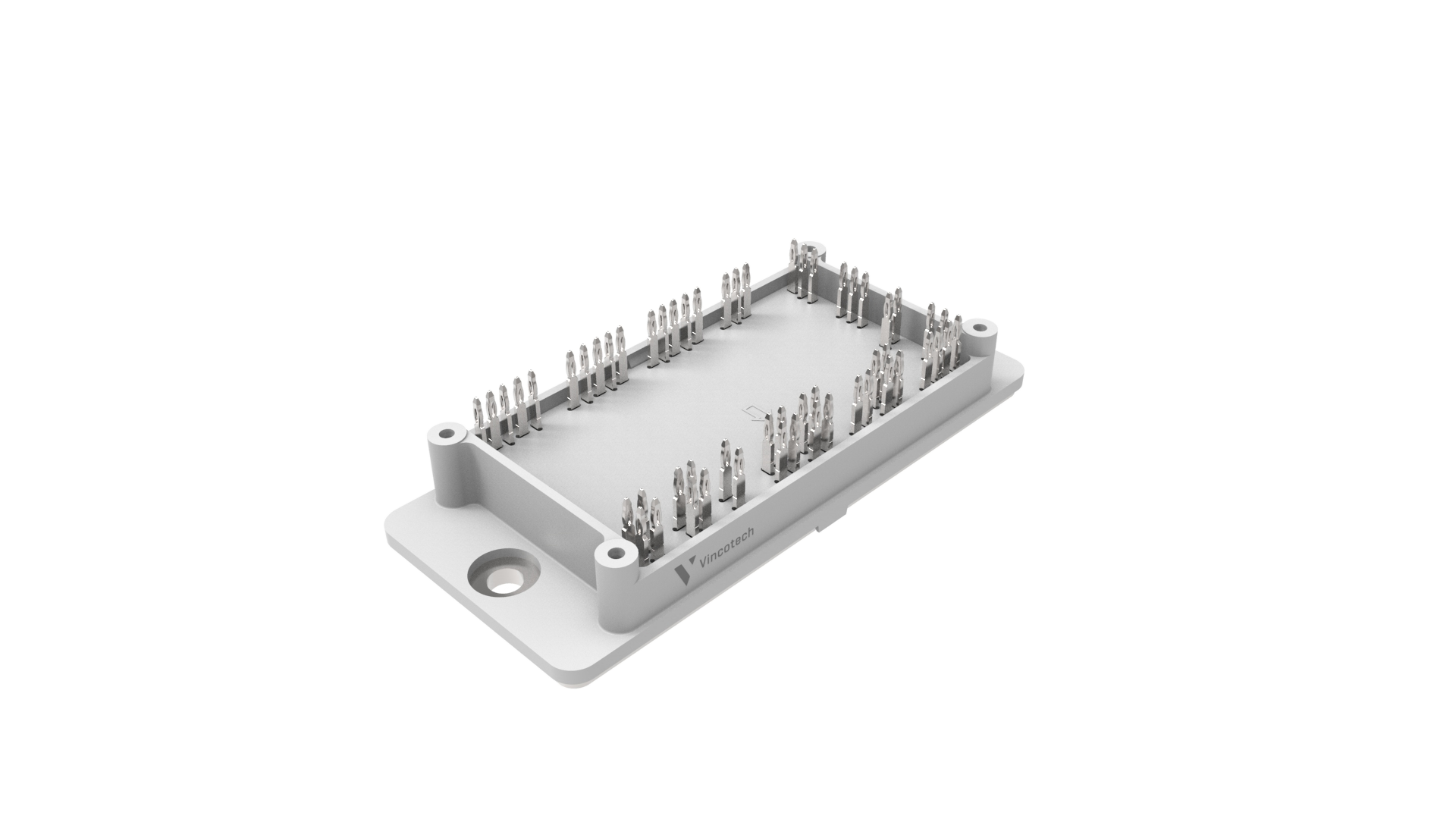

Mechanical & housing characteristics

flow 2

• Mechanical connection to PCB: 4 towers
• Footprint: 107.2 mm x 47 mm
• Height: 17 mm
• Pin type: Press-fit pin
