flowBOOST S3 dual
B0-SP10B2A200S705-PA58L96T
Topology Housing Voltage Current Main chip technology Product status
Product description
Basic information
- Product line: flowBOOST S3 dual
- Product status: Series
- Standard packaging quantity (pieces): 45
Electrical characteristics
- Voltage: 950 V
- Current: 200 A
- Auxiliary diodes for FC pre-charge (patent pending)
- Bypass Diode
- Dual Flying Cap Booster
- Kelvin Emitter for improved switching performance
- Temperature sensor
Three-level FC Booster
Chip & isolation characteristics
- Low collector emitter saturation voltage
- High speed and smooth switching
IGBT S7
- Base isolation: Al2O3
Isolation

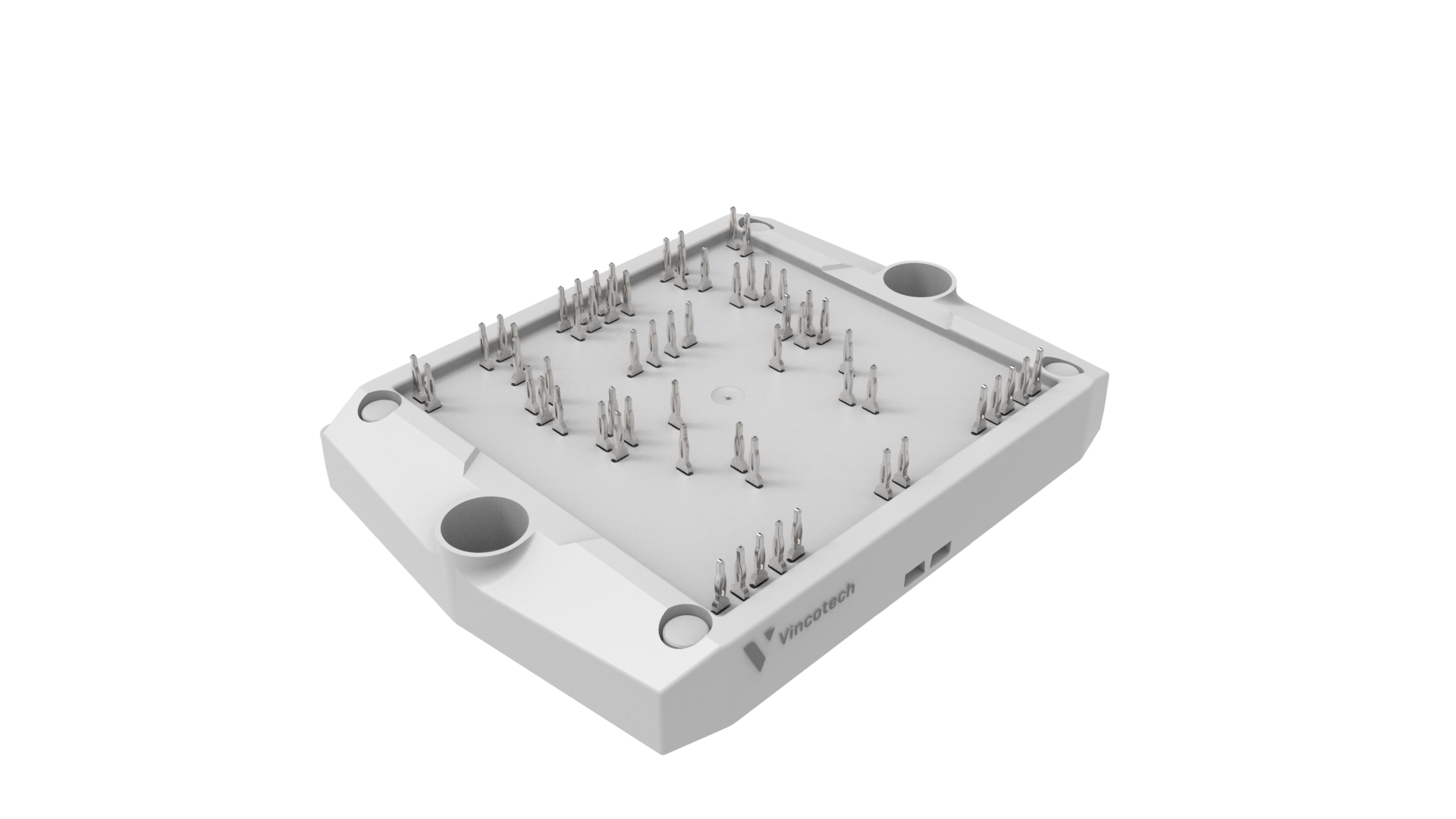

Mechanical & housing characteristics
- Mechanical connection to PCB: no towers
- Footprint: 81.8 mm x 61.3 mm
- Height: 12 mm
- Pin type: Press-fit pin
flow S3
