flow3xNPC 1
10-PG07N3A030S5-M894F96T
Topology Housing Voltage Current Main chip technology Product status
Product description
Basic information
- Product line: flow3xNPC 1
- Product status: Series
- Standard packaging quantity (pieces): 100
Electrical characteristics
- Voltage: 650 V
- Current: 30 A

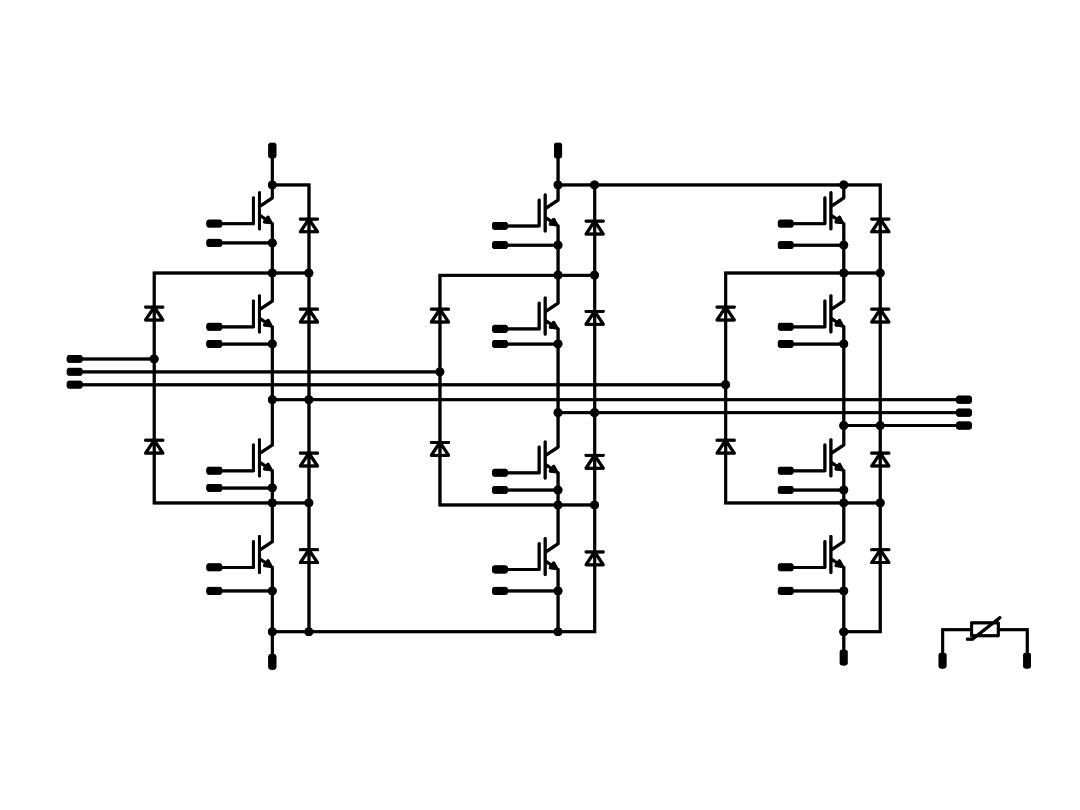

- Three-phase Neutral Point Clamped Topology (I-Type)
- Kelvin Emitter for improved switching performance
- Temperature sensor
Three-level NPC (I-Type)
Chip & isolation characteristics
- High speed and smooth switching
- Low gate charge
- Very low collector emitter saturation voltage
IGBT S5
- Base isolation: Al2O3
Isolation

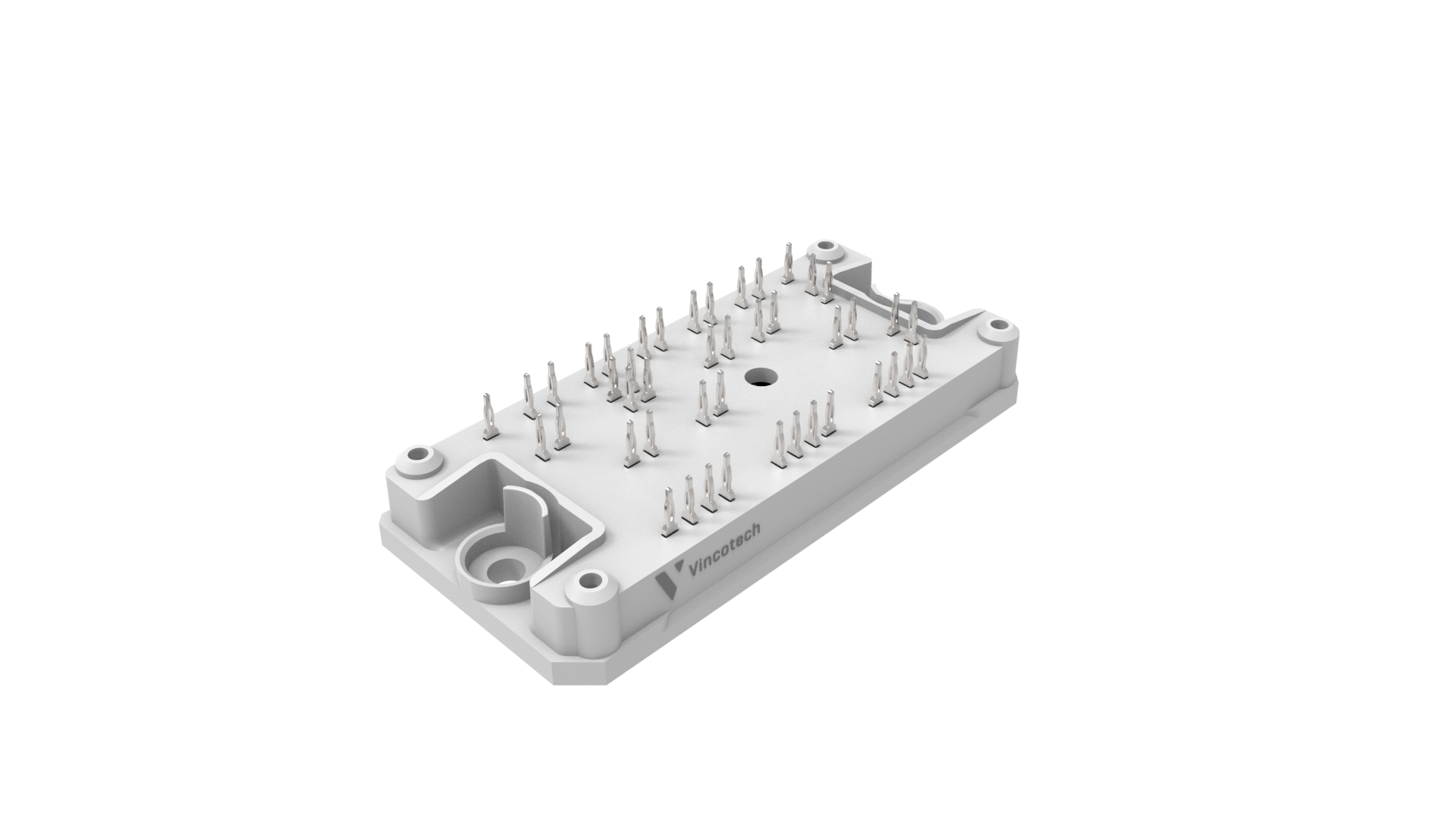

Mechanical & housing characteristics
- Mechanical connection to PCB: 4 towers
- Footprint: 82 mm x 37.4 mm
- Height: 12 mm
- Pin type: Press-fit pin
flow 1
