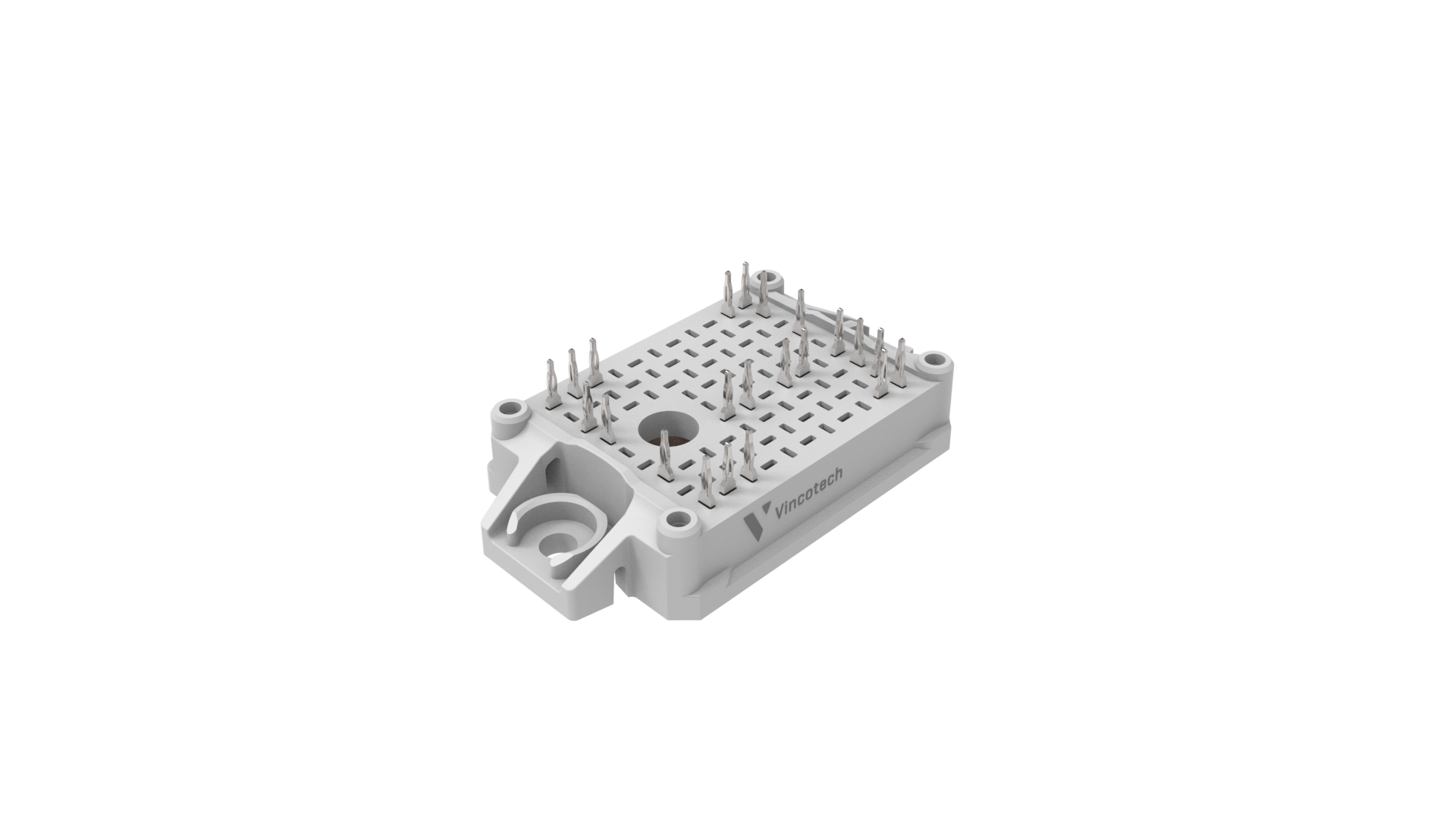

flowPACK E1

Basic information

• Product line: flowPACK E1
• Product status: Samples available
• Standard packaging quantity (pieces): 100

Electrical characteristics

• Voltage: 1200 V
• Current: 50 A

Sixpack

• Open Emitter configuration
• Temperature sensor
• Inverter
• Low side Kelvin Emitter for improved switching performance

Chip & isolation characteristics

IGBT M7

• Easy paralleling
• Low turn-off losses
• Low collector emitter saturation voltage
• Positive temperature coefficient
• Short tail current
• Switching optimized for EMC

Isolation

• Base isolation: AlN

Mechanical & housing characteristics

flow E1

• Mechanical connection to PCB: 4 towers
• Footprint: 62.8 mm x 34.8 mm
• Height: 12 mm
• Pin type: Press-fit pin
