flowPACK E2 SiC

Basic information

• Product line: flowPACK E2 SiC
• Product status: Samples available
• Standard packaging quantity (pieces): 100

Electrical characteristics

• Voltage: 1200 V
• Current: 70 A
• R(DS)on: 18 mOhm

PIM (CIB)

• 3ph Inverter
• Low and high side Kelvin Emitter for improved switching performance
• MOSFET
• Open Emitter configuration
• Temperature sensor

Chip & isolation characteristics

SiC MOSFET

• Easy paralleling
• Low on-resistance
• Fast switching speed
• Fast recovery body diode

Isolation

• Base isolation: Al₂O₃

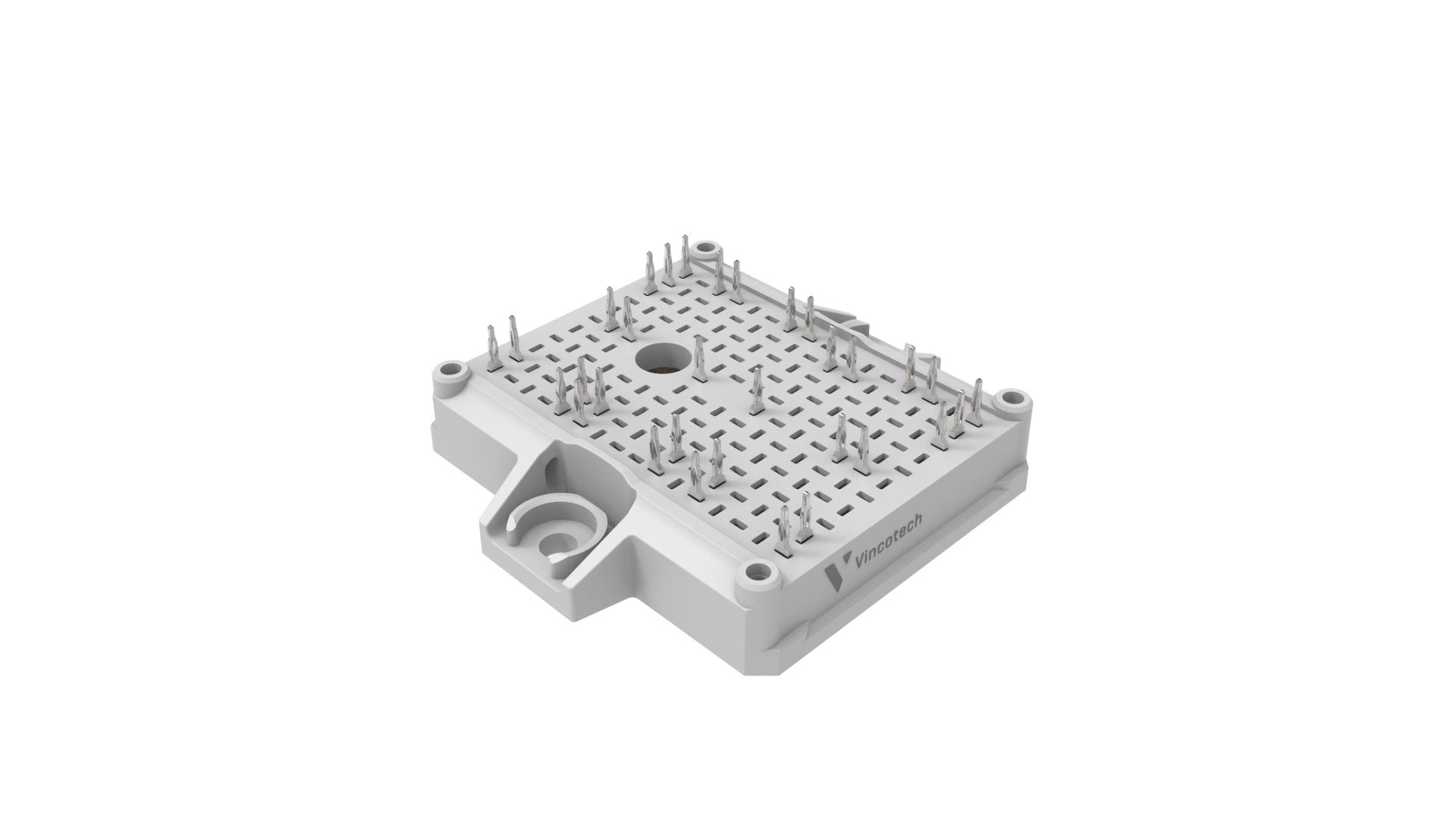

Mechanical & housing characteristics

flow E2

• Mechanical connection to PCB: 4 towers
• Footprint: 62.8 mm x 57.7 mm
• Height: 12 mm
• Pin type: Press-fit pin
