Basic module information
|Product line:||flowNPC 2|
|Product status:||Series production|
|Break down voltage:||950 V|
|Nominal chip current rating:||400 A|
|Standard Packing Quantity:||36|
|Module datasheet:||PDF, 8 MB|

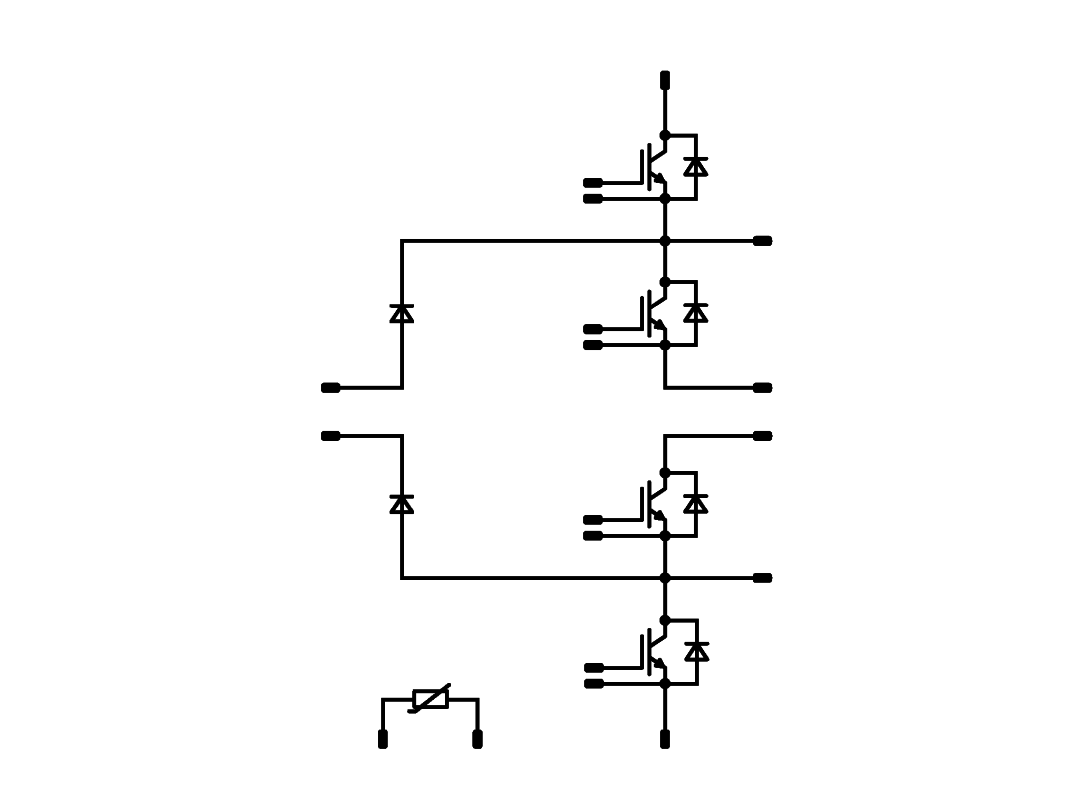

|Topology:||Three-level NPC (I-Type)|
- Low side Kelvin Emitter for improved switching performance
- Neutral Point Clamped Topology (I-Type)
- Split topology
- Temperature sensor
|Chip technology (main switch):||IGBT S7|
- Low collector emitter saturation voltage
- High speed and smooth switching
|Base isolation (e.g. ceramic):||Al2O3|
|Electrical interconnection:||Press-fit pin|
Load this product to the simulation environment to get an overview of its performance.Simulate this module
Housing related details

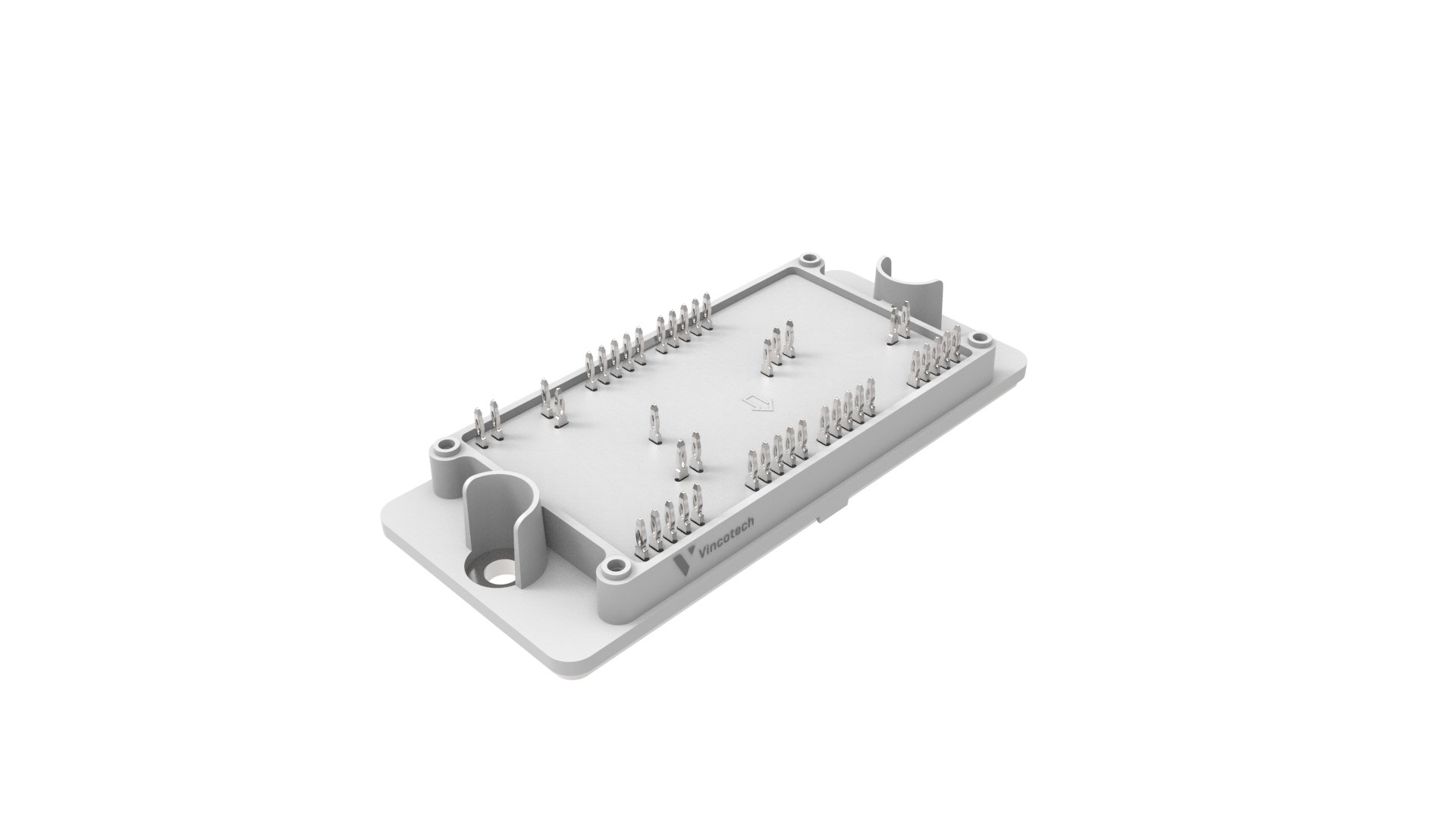

|Module housing:||flow 2|
|Mechanical connection to the PCB:||4 towers|
|Footprint:||107.2 mm x 47 mm|
- Convex shaped baseplate for superior thermal contact
- Cu baseplate
- Thermo-mechanical push-and-pull force relief
- Press-fit pin
- Reliable cold welding connection
PDF, 2 MB
The handling instruction gives information during the design phase of the application and for usage in the production.
To ensure a proper long term stability and reliability of the power module in the application details about the PCB requirements, heat sinks and thermal interface material as well as instructions on the assembly process are shown.
PDF, 88 kB
The package data gives information about dimensions of the housing.
3D module outline (STEP)
STP, 3 MB
The 3D step file can be downloaded for the implementation into your CAD system.
Power module datasheet explanation
PDF, 4 MB
Explanation of measurement conditions and data sources used in Vincotech’s power module datasheets.
Product Qualification at Vincotech
PDF, 293 kB
Vincotech’s qualification tests follow the minimum requirements for the series release of power modules described in this document. These tests also apply for release and re-qualification of modified products.
UL (Underwriters laboratories)
Vincotech power modules are recognized by UL (Underwriters Laboratories). The UL Mark indicates that UL has tested representative samples of the product and found it to be compliant with the applicable standard or other requirements with respect to its potential risk of fire, electric shock and mechanical hazards.
PDF, 160 kB
All Vincotech standard power modules comply with the RoHS specification.
