flowPACK 2
Basic module information
| Part number: | 30-F2126TA100M7-L289F74 |
|---|---|
| Product line: | flowPACK 2 |
| Product status: | Series |
| Break down voltage: | 1200 V |
| Nominal chip current rating: | 100 A |
| Standard Packing Quantity: | 100 |
Product details

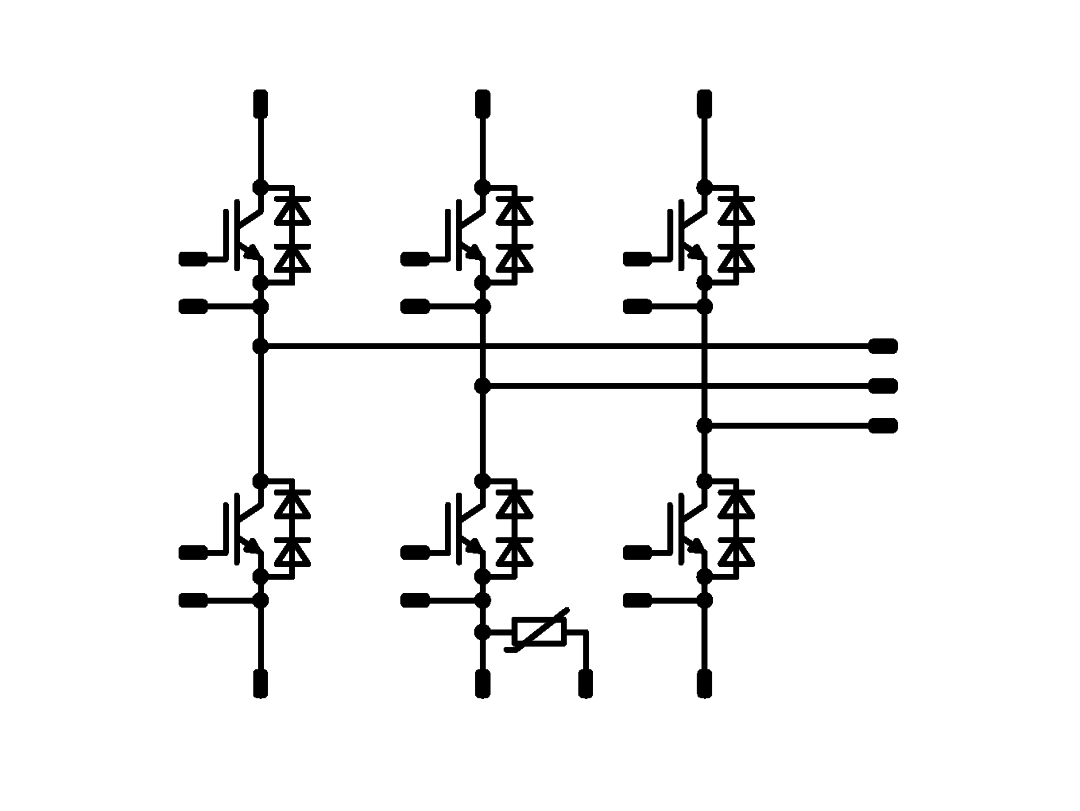

| Topology: | Sixpack |
|---|
- Kelvin Emitter for improved switching performance
- Open Emitter configuration
- Temperature sensor
- 3xHalf Bridge
- Tandem inverter diode
| Chip technology (main switch): | IGBT M7 |
|---|
- Easy paralleling
- Low turn-off losses
- Low collector emitter saturation voltage
- Positive temperature coefficient
- Short tail current
- Switching optimized for EMC
| Electrical interconnection: | Solder pin |
|---|
Housing related details
| Module housing: | flow 2 |
|---|---|
| Mechanical connection to the PCB: | 4 towers |
| Footprint: | 107.2 mm x 47 mm |
| Height: | 17 mm |
- Convex shaped baseplate for superior thermal contact
- Cu baseplate
- Thermo-mechanical push-and-pull force relief
- Solder pin
