flowFC 1

Basic module information

Part number: 10-PY07FCA200RG-LQ45L60Y
Product line: flowFC 1
Product status: Series
Break down voltage: 1200 V
Nominal chip current rating: 200 A
Standard Packing Quantity: 100
Module datasheet: PDF, 12 MB


Product details

Topology: Three-level FC Inverter
  • Integrated Capacitor
  • Integrated NTC
  • Three-level FlyingCap inverter
Chip technology (main switch): IGBT fast
  • High efficiency in hard switching and resonant topologies
  • High speed switching
  • Low gate charge
Base isolation (e.g. ceramic): Al2O3
Electrical interconnection: Press-fit pin

Load this product to the simulation environment to get an overview of its performance.

Simulate this module

Housing related details

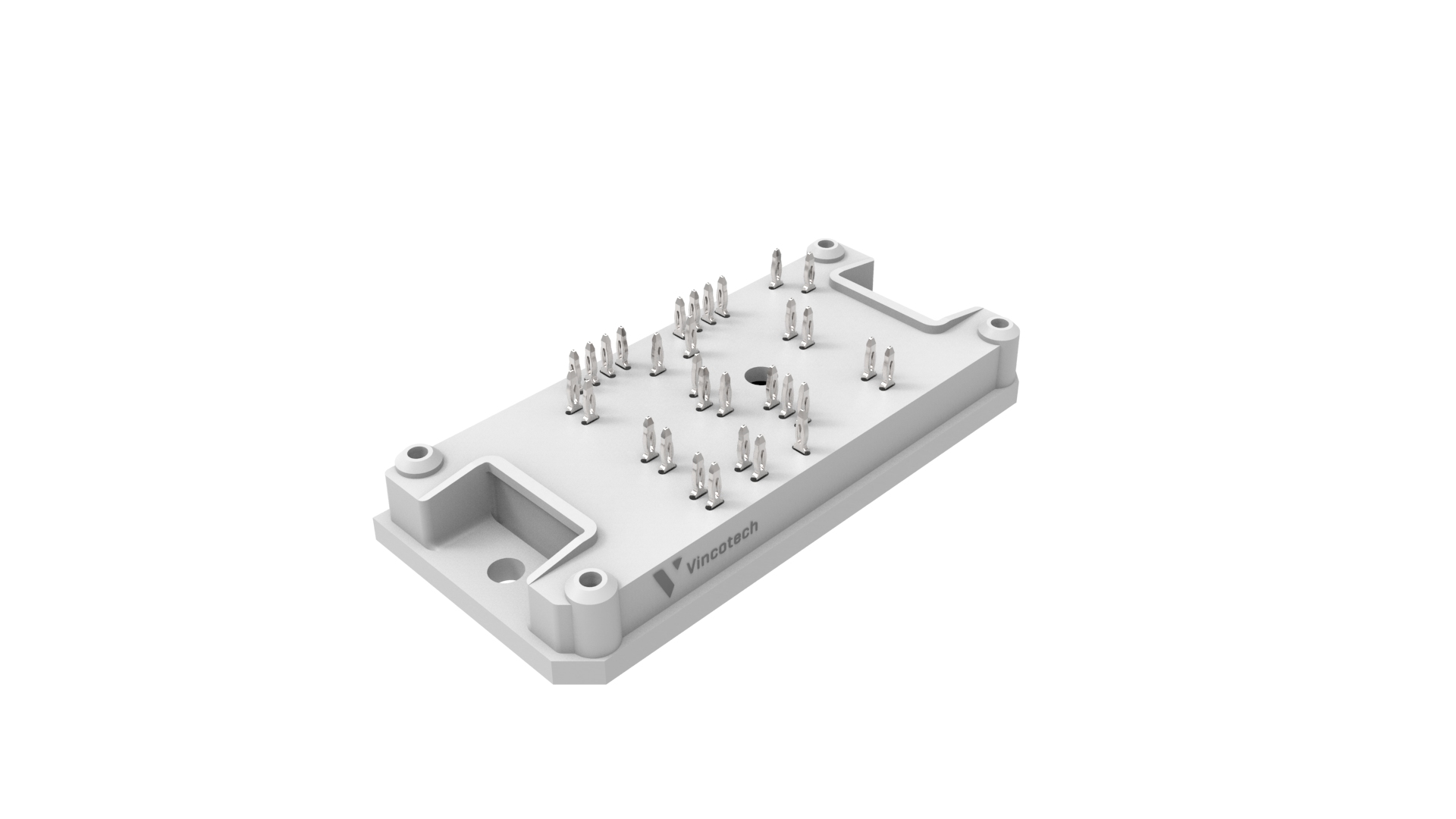

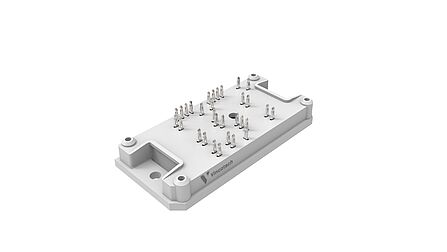

Module housing: flow 1
Mechanical connection to the PCB: 4 towers
Footprint: 82 mm x 37.4 mm
Height: 12 mm
  • Convex shaped substrate for superior thermal contact
  • Thermo-mechanical push-and-pull force relief
  • Press-fit pin
  • Reliable cold welding connection
