flowPHASE 0 + NTC

Basic information

• Product line: flowPHASE 0 + NTC
• Product status: Series
• Standard packaging quantity (pieces): 135

Electrical characteristics

• Voltage: 1200 V
• Current: 100 A

Half-Bridge

• Half Bridge
• Temperature sensor

Chip & isolation characteristics

IGBT4

• Easy paralleling
• Low turn-off losses
• Low collector emitter saturation voltage
• Positive temperature coefficient
• Short tail current

Isolation

• Base isolation: Al₂O₃

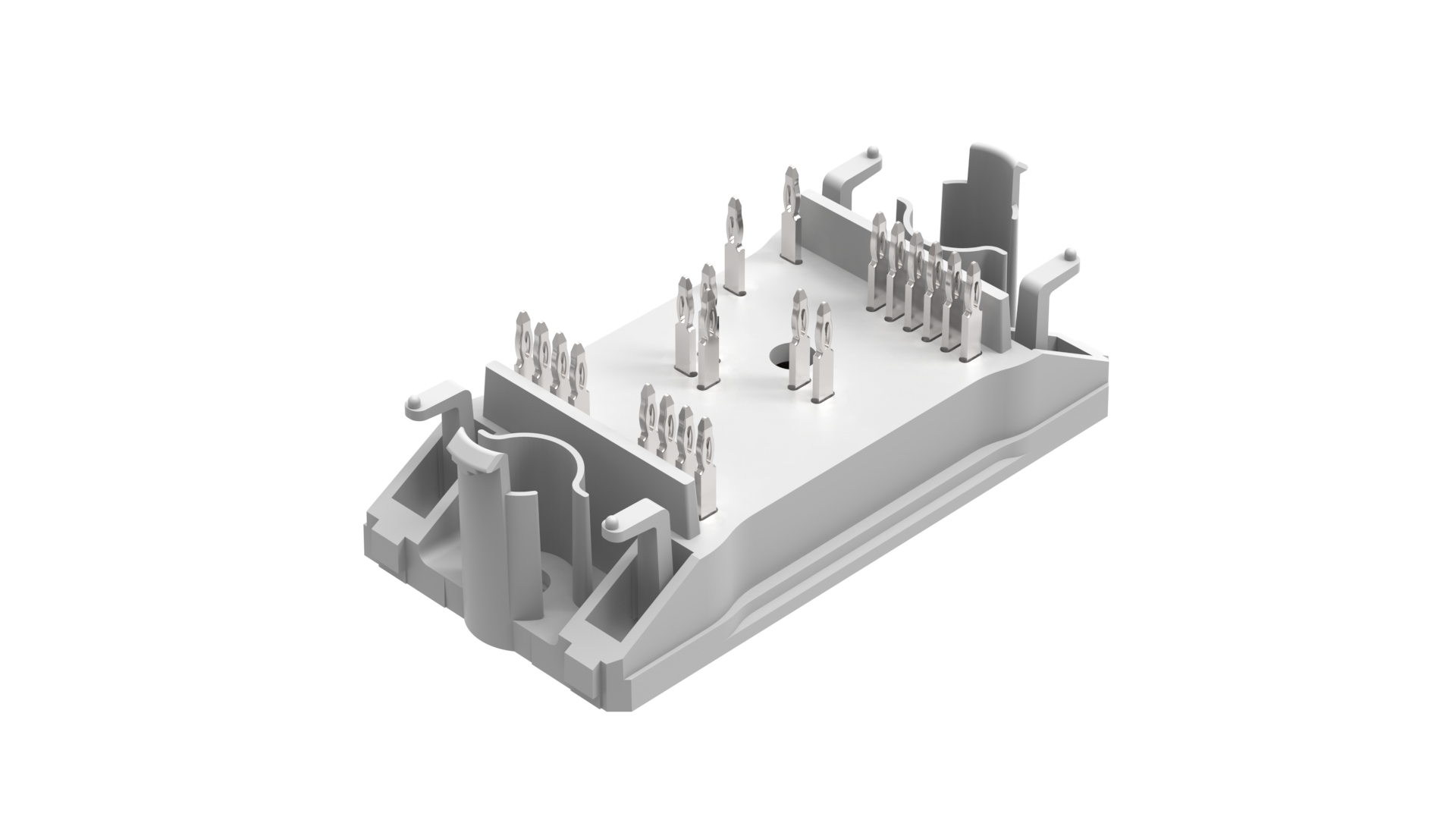

Mechanical & housing characteristics

flow 0

• Mechanical connection to PCB: 2 clips
• Footprint: 68.4 mm x 32.5 mm
• Height: 17 mm
• Pin type: Press-fit pin
