SMALL, FAST AND AFFORDABLE

flowPHASE 0 featuring NTC - 1200 V / 40 - 100 A

The go-to building block for your engineering efforts in a small, fast and affordable package

Featuring high-voltage, half-bridge topology, Vincotech's new flowPHASE 0 family is here to facilitate your engineering efforts and enhance your application. The new flowPHASE 0 family featuring NTC is the go-to building block for your charger, SMPS, solar or ESS application. Speedy, compact and packaged in our flow 0 housing, these modules are designed to not only deliver high power density, but also to upgrade the given application and cut costs.

Main benefits

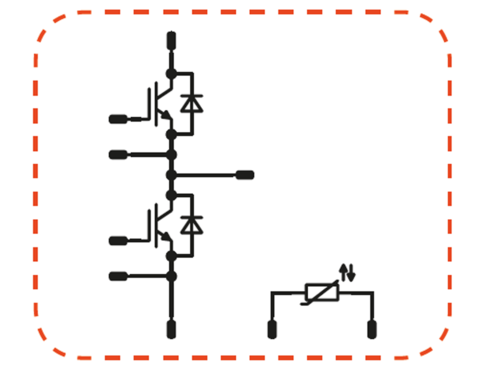

  • High-voltage, half-bridge topology
  • High-speed switching up to 50 kHz
  • High power density
  • Ultra-low conduction and switching losses
  • Best-in-class Rth with AlN DCB

Features:

  • Low conduction and switching losses
  • Integrated thermistor
  • Cost-effective Al2O3 or high thermal performances AlN DCB
  • Solder pins or Press-fit pins

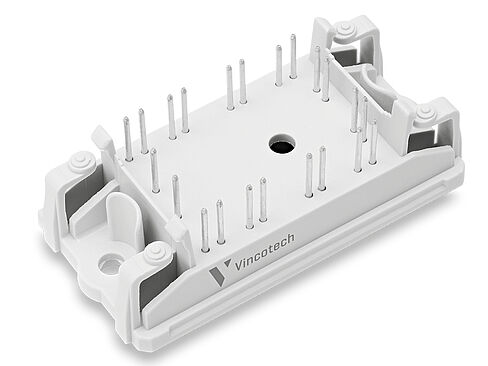

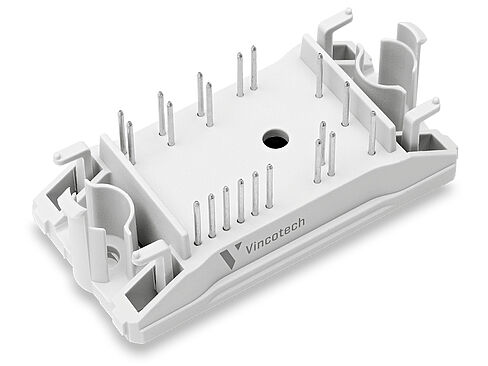

  • Compact, low inductive flow 0 12 mm or flow 0 17 mm housing

flowPHASE 0 with NTC - solder pins - overview:

Part-No. Voltage in V Current in A flow 0 Technology DCB
10-F0122PB050SC02-M817F09 1200 50  17 mm IGBT4 Al2O3
10-FZ122PB050SC02-M817F08 1200  50  12 mm IGBT4 Al2O3
10-F0122PB075SC02-M818F09 1200  75  17 mm IGBT4 Al2O3
10-FZ122PB075SC-M818F08 1200  75  12 mm IGBT4 Al2O3
10-F0122PB100SC02-M819F09 1200  100 17 mm IGBT4 Al2O3
10-FZ122PB100SC02-M819F08 1200  100 12 mm IGBT4 Al2O3
10-FZ122PB050SH-M817F28 1200  50  12 mm IGBT4 HS Al2O3
10-FZ122PB075SH-M818F28 1200  75  12 mm IGBT4 HS Al2O3
10-FZ122PB100SH-M819F28 1200  100 12 mm IGBT4 HS Al2O3
10-FZ122PB040FV-M817F88 1200 40  12 mm IGBTF HS Al2O3
10-FZ122PB080FV-M818F88 1200  80  12 mm IGBTF HS Al2O3
10-F0122PB050SC03-M817F19 1200  50  17 mm IGBT4 AlN
10-FZ122PB050SC03-M817F18 1200  50  12 mm IGBT4 AlN
10-F0122PB075SC03-M818F19 1200  75  17 mm IGBT4 AlN
10-FZ122PB075SC03-M818F18 1200  75  12 mm IGBT4 AlN
10-F0122PB100SC03-M819F19 1200  100 17 mm IGBT4 AlN
10-FZ122PB100SC03-M819F18 1200  100 12 mm IGBT4 AlN
10-FZ122PB050SH01-M817F38 1200  50  12 mm IGBT4 HS AlN
10-FZ122PB075SH01-M818F38 1200  75  12 mm IGBT4 HS AlN
10-FZ122PB100SH01-M819F38 1200  100 12 mm IGBT4 HS AlN
10-FZ122PB040FV01-M817F98 1200  40  12 mm IGBTF HS AlN
10-FZ122PB080FV01-M818F98 1200  80  12 mm IGBTF HS AlN

flowPHASE 0 with NTC - Press-fit - overview:

Part-No. Voltage in V Current in A flow 0 Technology DCB
10-P0122PB050SC02-M817F09Y 1200  50  17 mm IGBT4 Al2O3
10-PZ122PB050SC02-M817F08Y 1200  50  12 mm IGBT4 Al2O3
10-P0122PB075SC02-M818F09Y 1200  75  17 mm IGBT4 Al2O3
10-PZ122PB075SC02-M818F08Y 1200  75 12 mm IGBT4 Al2O3
10-P0122PB100SC02-M819F09Y 1200  100 17 mm IGBT4 Al2O3
10-PZ122PB100SC02-M819F08Y 1200  100 12 mm IGBT4 Al2O3
10-PZ122PB050SH-M817F28Y 1200  50  12 mm IGBT4 HS Al2O3
10-PZ122PB075SH-M818F28Y 1200  75  12 mm IGBT4 HS Al2O3
10-PZ122PB100SH-M819F28Y 1200  100 12 mm IGBT4 HS Al2O3
10-PZ122PB040FV-M817F88Y 1200  40  12 mm IGBTF HS Al2O3
10-PZ122PB080FV-M818F88Y 1200  80  12 mm IGBTF HS Al2O3
10-P0122PB050SC03-M817F19Y 1200  50  17 mm IGBT4 AlN
10-PZ122PB050SC03-M817F18Y 1200  50  12 mm IGBT4 AlN
10-P0122PB075SC03-M818F19Y 1200  75  17 mm IGBT4 AlN
10-PZ122PB075SC03-M818F18Y 1200  75  12 mm IGBT4 AlN
10-P0122PB100SC03-M819F19Y 1200  100 17 mm IGBT4 AlN
10-PZ122PB100SC03-M819F18Y 1200  100 12 mm IGBT4 AlN
10-PZ122PB050SH01-M817F38Y 1200  50  12 mm IGBT4 HS AlN
10-PZ122PB075SH01-M818F38Y 1200  75  12 mm IGBT4 HS AlN
10-PZ122PB100SH01-M819F38Y 1200  100 12 mm IGBT4 HS AlN
10-PZ122PB040FV01-M817F98Y 1200  40  12 mm IGBTF HS AlN
10-PZ122PB080FV01-M818F98Y 1200  80  12 mm IGBTF HS AlN

Samples of the flowPHASE 0 family with NTC are available on special request.
