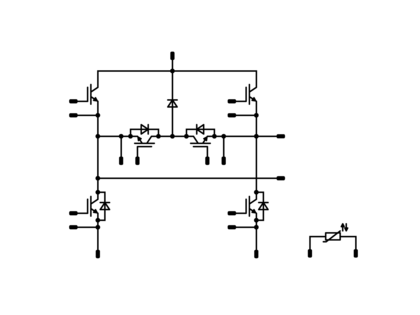

Topology schematics

H6.5

  • Three-level topology for single phase inverters
More about H6.5
  • Sub-Topology
      Reset selected filters Products by Topology
    • Product line
      Reset selected filters
    • Voltage
      in V
        Reset selected filters
      • Current
        in A
        Reset selected filters
      • Main Chip technology
          Reset selected filters
        • Housing Family
            Reset selected filters Products by Housing
          • Height
            in mm
              Reset selected filters
            0 Products
            Download Selection
            View
            Part-no details / Part-no datasheet Product status Topology Sub-Topology Product line Voltage

            in V            		 Current

            in A            		 Main Chip technology Housing family Height in

            mm            		 Isolation Simulation
            10-PY07BVA030S5-LF42E08Y Module datasheet: Series production H6.5 Booster + H6.5-KE-NTC flowSOL 1 BI (TL) 650 30 IGBT S5 flow 1 12 Al2O3 Simulate this module
            10-PY07HVA075RG-L985F88Y Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 75 IGBT fast flow 1 12 Al2O3 Simulate this module
            10-PY07BVA030RW-LF42E28Y Module datasheet: Series production H6.5 Booster + H6.5-KE-NTC flowSOL 1 BI (TL) 650 30 IGBT fast flow 1 12 Al2O3 Simulate this module
            10-FY07HVA100S521-L986F33 Module datasheet: In qualification H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 100 IGBT S5 flow 1 12 Al2O3 Simulate this module
            10-PY07HVA100S521-L986F33Y Module datasheet: In qualification H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 100 IGBT S5 flow 1 12 Al2O3 Simulate this module
            10-PZ07BVA020SM-LD44E08Y Module datasheet: Series production H6.5 Booster + H6.5-KE-NTC flowSOL 0 BI (TL) 650 20 IGBT H5 flow 0 12 Al2O3 Simulate this module
            10-FY07HVA075S502-L985F18 Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 75 IGBT S5 flow 1 12 Al2O3 Simulate this module
            10-FY07BVA075S5-LF45E18 Module datasheet: Series production H6.5 Dual Booster+H6.5-KE-NTC flowSOL 1 BI (TL) 650 75 IGBT S5 flow 1 12 Al2O3 Simulate this module
            10-FZ07BVA030S5-LD45E08 Module datasheet: Series production H6.5 Booster + H6.5-KE-NTC flowSOL 0 BI (TL) 650 30 IGBT S5 flow 0 12 Al2O3 Simulate this module
            10-FY07BVA030RW-LF42E28 Module datasheet: Series production H6.5 Booster + H6.5-KE-NTC flowSOL 1 BI (TL) 650 30 IGBT fast flow 1 12 Al2O3 Simulate this module
            10-FZ07BVA020SM-LD44E08 Module datasheet: Series production H6.5 Booster + H6.5-KE-NTC flowSOL 0 BI (TL) 650 20 IGBT H5 flow 0 12 Al2O3 Simulate this module
            10-FY07BVA050S5-LF44E18 Module datasheet: Series production H6.5 Dual Booster+H6.5-KE-NTC flowSOL 1 BI (TL) 650 50 IGBT S5 flow 1 12 Al2O3 Simulate this module
            10-PC07BVA030S5-LD45E06Y Module datasheet: Series production H6.5 Booster + H6.5-KE-NTC flowSOL 0 BI (TL) 650 30 IGBT S5 flow 0 12 Al2O3 Simulate this module
            10-FY07HVA100RG-L986F88 Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 100 IGBT fast flow 1 12 Al2O3 Simulate this module
            10-PY07BVA050S5-LF44E18Y Module datasheet: Series production H6.5 Dual Booster+H6.5-KE-NTC flowSOL 1 BI (TL) 650 50 IGBT S5 flow 1 12 Al2O3 Simulate this module
            10-PY07BVA075S5-LF45E18Y Module datasheet: Series production H6.5 Dual Booster+H6.5-KE-NTC flowSOL 1 BI (TL) 650 75 IGBT S5 flow 1 12 Al2O3 Simulate this module
            10-FY07HVA075S5-L985F08 Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 75 IGBT S5 flow 1 12 Al2O3 Simulate this module
            10-PY07HVA050S5-L984F08Y Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 50 IGBT S5 flow 1 12 Al2O3 Simulate this module
            10-FY07HVA050S5-L984F08 Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 50 IGBT S5 flow 1 12 Al2O3 Simulate this module
            10-PY07HVA075S5-L985F08Y Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 75 IGBT S5 flow 1 12 Al2O3 Simulate this module
            10-PY07HVA100S5-L986F08Y Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 100 IGBT S5 flow 1 12 Al2O3 Simulate this module
            10-FY07HVA075RG01-L985F48 Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 75 IGBT fast flow 1 12 Al2O3 Simulate this module
            10-FY07HVA100S5-L986F08 Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 100 IGBT S5 flow 1 12 Al2O3 Simulate this module
            10-PY07HVA075RG01-L985F48Y Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 75 IGBT fast flow 1 12 Al2O3 Simulate this module
            10-FY07HVA050RG01-L984F48 Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 50 IGBT fast flow 1 12 Al2O3 Simulate this module
            10-PY07HVA050RG01-L984F48Y Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 50 IGBT fast flow 1 12 Al2O3 Simulate this module
            10-FY07HVA100RG11-L986F58 Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 100 IGBT fast flow 1 12 Al2O3 Simulate this module
            10-PY07HVA100RG11-L986F58Y Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 100 IGBT fast flow 1 12 Al2O3 Simulate this module
            10-FY07HVA100RG01-L986F48 Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 100 IGBT fast flow 1 12 Al2O3 Simulate this module
            10-PY07HVA100RG01-L986F48Y Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 100 IGBT fast flow 1 12 Al2O3 Simulate this module
            10-FY07HVA100S502-L986F18 Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 100 IGBT S5 flow 1 12 Al2O3 Simulate this module
            10-PY07HVA050S501-L984F28Y Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 50 IGBT S5 flow 1 12 Al2O3 Simulate this module
            10-FY07HVA050S501-L984F28 Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 50 IGBT S5 flow 1 12 Al2O3 Simulate this module
            10-PY07HVA075S501-L985F28Y Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 75 IGBT S5 flow 1 12 Al2O3 Simulate this module
            10-FY07HVA100S511-L986F38 Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 100 IGBT S5 flow 1 12 Al2O3 Simulate this module
            10-PY07HVA100S511-L986F38Y Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 100 IGBT S5 flow 1 12 Al2O3 Simulate this module
            10-FY07HVA100S501-L986F28 Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 100 IGBT S5 flow 1 12 Al2O3 Simulate this module
            10-PY07HVA100S501-L986F28Y Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 100 IGBT S5 flow 1 12 Al2O3 Simulate this module
            10-FY07BVA030S5-LF42E08 Module datasheet: Series production H6.5 Booster + H6.5-KE-NTC flowSOL 1 BI (TL) 650 30 IGBT S5 flow 1 12 Al2O3 Simulate this module
            10-FY07HVA050RG-L984F88 Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 50 IGBT fast flow 1 12 Al2O3 Simulate this module
            10-PY07HVA075S502-L985F18Y Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 75 IGBT S5 flow 1 12 Al2O3 Simulate this module
            10-FY07HVA075RG-L985F88 Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 75 IGBT fast flow 1 12 Al2O3 Simulate this module
            10-FY07HVA075S501-L985F28 Module datasheet: Series production H6.5 H6.5-KE-NTC flowPACK 1 H6.5 650 75 IGBT S5 flow 1 12 Al2O3 Simulate this module
