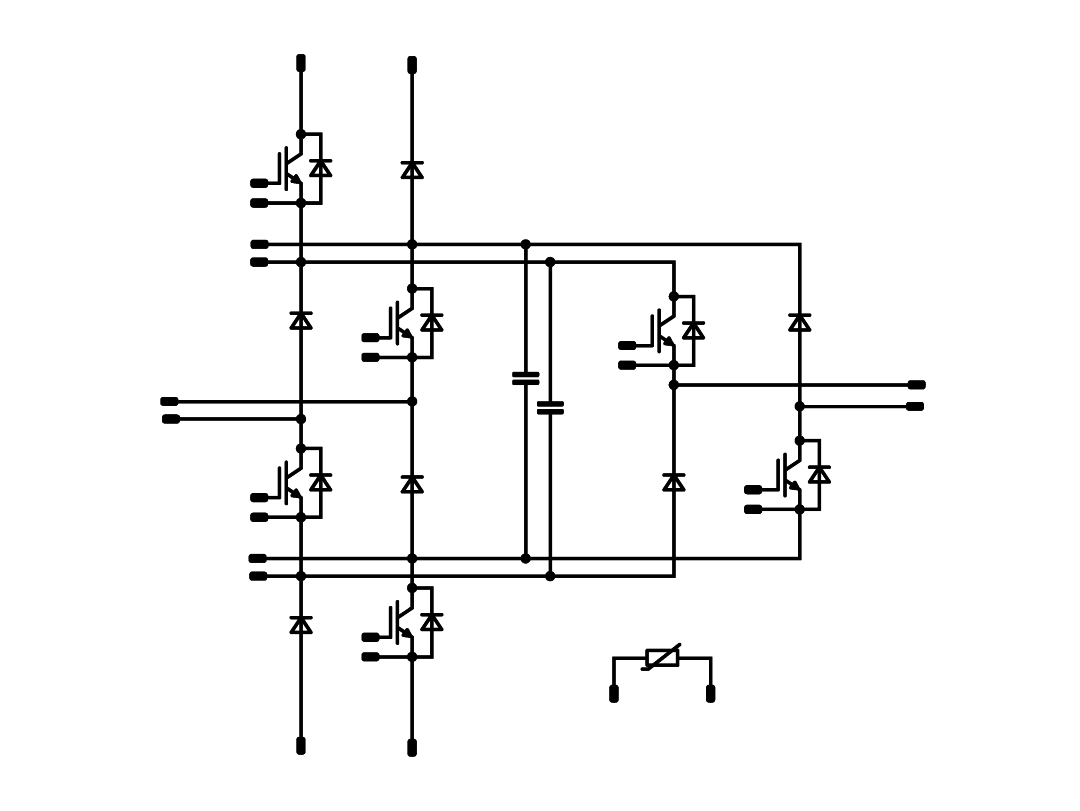

Topology schematics

Three-level ANPC

  • Advanced NPC topology (ANPC)
More about Three-level ANPC
  • Sub-Topology
      Reset selected filters Products by Topology
    • Product line
      Reset selected filters
    • Voltage
      in V
        Reset selected filters
      • Current
        in A
        Reset selected filters
      • Main Chip technology
          Reset selected filters
        • Housing Family
            Reset selected filters Products by Housing
          • Height
            in mm
              Reset selected filters
            0 Products
            Download Selection
            View
            Part-no details / Part-no datasheet Product status Topology Sub-Topology Product line Voltage

            in V            		 Current

            in A            		 Main Chip technology Housing family Height in

            mm            		 Isolation Simulation

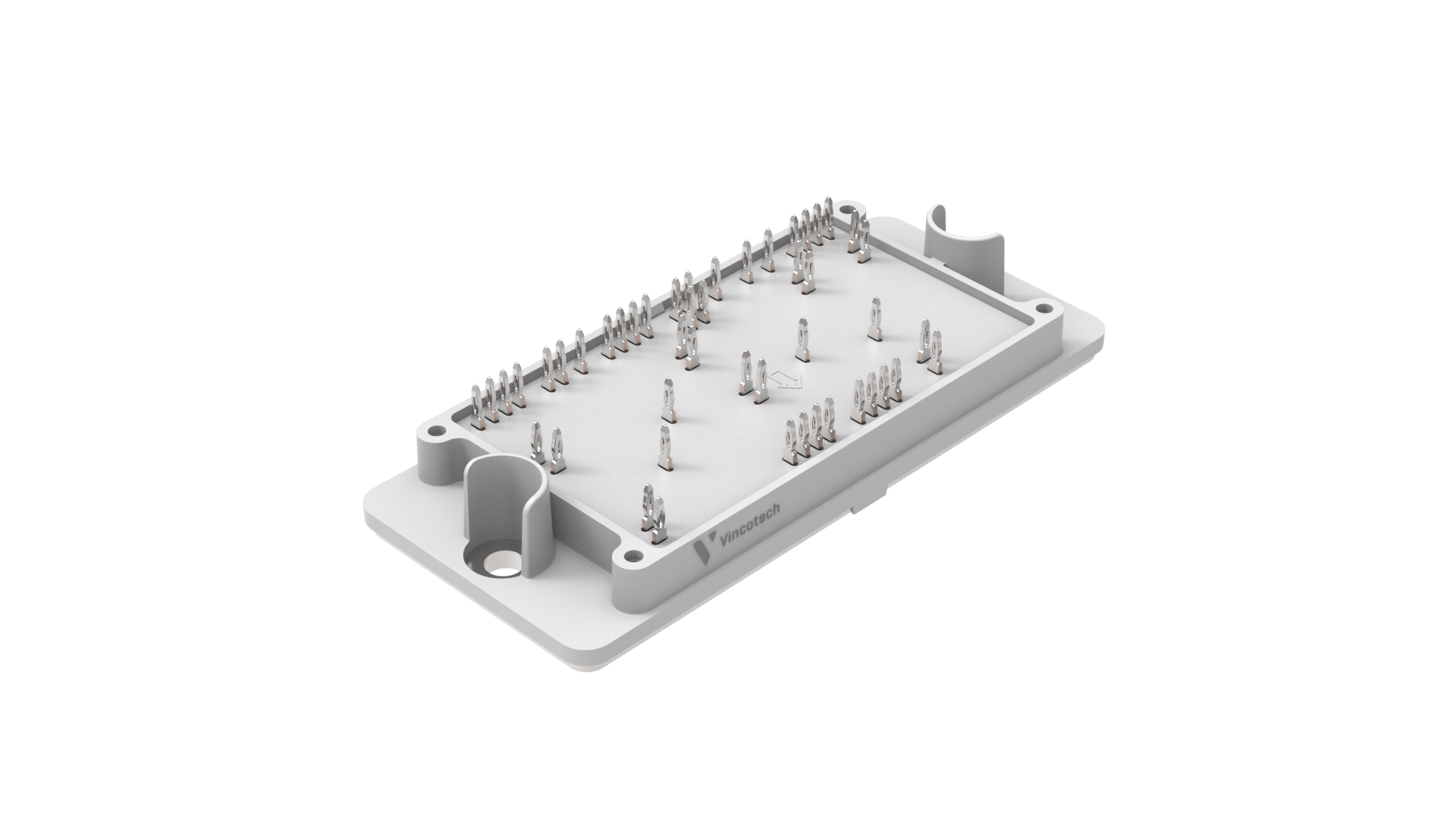

            30-PT10NAA200S701-PE59F08Y Module datasheet: In qualification Three-level ANPC ANPC-Split output-Split GND-NTC flowANPC 2 950 200 IGBT S7 flow 2 13 Al2O3 Simulate this module
            30-FT10NAA200S701-PE59F08 Module datasheet: In qualification Three-level ANPC ANPC-Split output-Split GND-NTC flowANPC 2 950 200 IGBT S7 flow 2 13 Al2O3 Simulate this module
            30-PT10NAA200S7-LU89F08Y Module datasheet: In qualification Three-level ANPC ANPC-Split output-Split GND-NTC flowANPC 2 1500 200 IGBT S7 flow 2 13 Al2O3 Simulate this module
            B0-SP10NAD600S7-LQ79F08T Module datasheet: Series production Three-level ANPC ANPC-Split output-Split GND-NTC-Positive flowANPC S3 split 950 600 IGBT S7 flow S3 12 Al2O3 Simulate this module
            B0-SP10NAE600S7-LQ89F08T Module datasheet: Series production Three-level ANPC ANPC-Split output-Split GND-NTC-Negative flowANPC S3 split 950 600 IGBT S7 flow S3 12 Al2O3 Simulate this module
            10-PG12NAB008ME-LC59F66T Module datasheet: In qualification Three-level ANPC ANPC-split-Pos-NTC flowANPC 1 split 1500 150 SiC MOSFET flow 1 12 Si3N4 Simulate this module
            10-PG12NAC008ME-LC69F66T Module datasheet: In qualification Three-level ANPC ANPC-split-Neg-NTC flowANPC 1 split 1500 150 SiC MOSFET flow 1 12 Si3N4 Simulate this module
            10-PG12NAB008MR04-LC59F46T Module datasheet: Series production Three-level ANPC ANPC-split-Pos-NTC flowANPC 1 split 1500 150 SiC MOSFET flow 1 12 Si3N4 Simulate this module
            10-PG12NAC008MR04-LC69F46T Module datasheet: Series production Three-level ANPC ANPC-split-Neg-NTC flowANPC 1 split 1500 150 SiC MOSFET flow 1 12 Si3N4 Simulate this module
            10-PG12NAB008MR02-LC59F36T Module datasheet: In qualification Three-level ANPC ANPC-split-Pos-NTC flowANPC 1 split 1500 150 SiC MOSFET flow 1 12 Al2O3 Simulate this module
            10-PG12NAC008MR02-LC69F36T Module datasheet: In qualification Three-level ANPC ANPC-split-Neg-NTC flowANPC 1 split 1500 150 SiC MOSFET flow 1 12 Al2O3 Simulate this module
            B0-SP12NAA008ME01-LR88F78T Module datasheet: In qualification Three-level ANPC ANPC-KE-IGBT-MOSFET-NTC flowANPC S3 1200 160 SiC MOSFET flow S3 12 Al2O3 Simulate this module
            B0-SP10NAD600S704-PE19F18T Module datasheet: Series production Three-level ANPC ANPC-Split output-Split GND-NTC-Positive flowANPC S3 split 950 600 IGBT S7 flow S3 12 AlN Simulate this module
            30-PT07NAA300S501-LF64F58Y Module datasheet: Series production Three-level ANPC ANPC-split-NTC-Cap-KE flowANPC 2 650 300 IGBT S5 flow 2 12 Al2O3 Simulate this module
            B0-SP10NAE600S704-PE29F18T Module datasheet: Series production Three-level ANPC ANPC-Split output-Split GND-NTC-Negative flowANPC S3 split 950 600 IGBT S7 flow S3 12 AlN Simulate this module
