flowMNPC 1 - featuring pure IGBT topology in a flow 1 housing

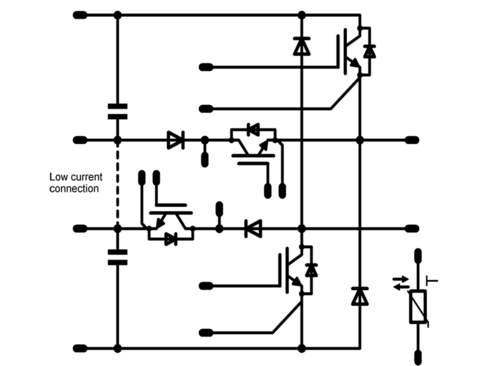

Vincotech has unveiled a new Mixed Neutral Point Clamped (MNPC, or T-type) inverter in a
flow 1 housing featuring pure IGBT topology.
These high-performance
flowMNPC 1 modules were engineered to provide cost-effective solutions for solar, UPS and power supply applications. The MNPC topology is geared to drive 1200 V applications with utmost efficiency. The IGBT4 HS3’s high switching frequency, paired with the IGBT3 in the neutral path holding the saturation voltage low, achieves high performance at a remarkably affordable price.
These MNPC modules perform particularly well in combination with our symmetric and dual boosters. A split output prevents cross conduction, while a low inductive pin-out contributes to its excellent EMC behavior. A Kelvin emitter is on board to maximize switching performance. The 12 mm flow 1 housing also comes with a temperature sensor inside.
Pre-applied thermal interface material is optional. The modules are also available with Press-fit pins.
General Features:
- MNPC topology with IGBT4 HS3 for high switching frequency
- Low-inductive pin-out
- Split output eliminates x-conduction
- Able to handle reactive power and LVRT
- Low inductive, 12 mm flow 1 housing
- Pre-applied thermal interface material optional
- Available with Press-fit pins
These flowMNPC 1 modules can handle reactive power and LVRT (low voltage ride through). The 10-FY12NMA160SH01-M820F18 module is designed for applications demanding greatly improved LVRT.
Vincotech’s flowMNPC 1 come in flow 0, flow 1, flow 2, and VINco X4 housings. Samples are available now and the modules are already in production.
