MiniSKiiP® MEETS HALF-BRIDGE



Save up to 15 % on system costs with the NEW MiniSKiiP®DUAL product line,



MiniSKiiP®DUAL
MiniSKiiP®DUAL
With the addition of the new MiniSKiiP®DUAL to our line of standard MiniSKiiP® power modules, a single platform now covers a very wide power range extending all the way up to 90 kW for 650 V and 1200 V applications. These MiniSKiiP® half-bridge modules equipped with solder-free spring-contacts can now replace baseplate modules with screwed bus bar connections to drive down inverter package and manufacturing costs by as much as 15 %.

MiniSKiiP®DUAL's baseplate-less design uses Al2O3 DCB ceramic, a material with proven merits, to achieve superior thermal conductivity to the heat sink.

Main benefits

  • Up to 15 % savings on system costs
  • Scalable inverter design: 40 to 90 kW
  • Reliable spring contact technology
  • Integrated NTC temperature sensor
  • Various types of pre-applied TIM available (silicone-free and silicone-based)

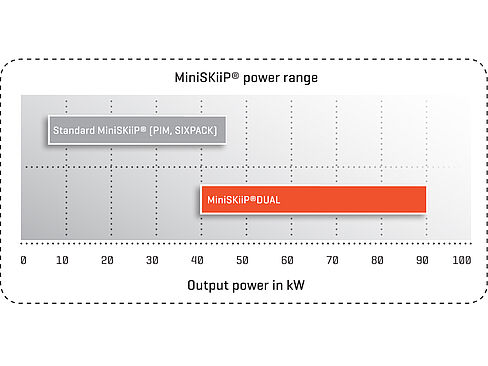

MiniSKiiP® Power Range

Features:

  • Nominal chip current from 100 A to 400 A for scalable designs in the 40-to-90 kW range
  • Full isolation and low thermal resistance with baseplate-less 0.38 mm Al2O3 DCB ceramic
  • Latest chip technologies with anti-parallel CAL diodes:
    • 1200 V Trench IGBT4
    • 650 V Trench IGBT3

Target applications:

  • Standard industrial drives
  • Solar inverters
  • UPS
  • Power supply

Table

Part-No.

Voltage in V Current in A Technology Housing size

80-M2072PA150SC-K704F40

650 150 Trench IGBT MiniSKiiP 2

80-M2072PA200SC-K705F40

650 200 Trench IGBT MiniSKiiP 2

80-M3072PA300SC-K836F30

650 300 Trench IGBT MiniSKiiP 3

80-M2122PA150SC-K708F40

1200 150 Trench IGBT4 MiniSKiiP 2

80-M2122PA200SC-K709F40

1200 200 Trench IGBT4 MiniSKiiP 2

80-M3122PA300SC-K839F42

1200 300 Trench IGBT4 MiniSKiiP 3

80-M3122PA400SC-K830F40

1200 400 Trench IGBT4 MiniSKiiP 3

Samples of the MiniSKiiP®DUAL modules are available on special request.
