VINcoNPC X8

Basic module information

Part number: 70-W424NIA800SH-M800F
Product line: VINcoNPC X8
Product status: In qualification
Break down voltage: 2400 V
Nominal chip current rating: 800 A
Standard Packing Quantity: 6
Module datasheet: PDF, 2 MB


Product details

Topology: Three-level NPC (I-Type)
  • Neutral Point Clamped Topology (I-Type)
  • Kelvin Emitter for improved switching performance
  • Optional snubber diode for switching loss reduction with asymmetrical inductance feature
  • Temperature sensor
Chip technology (main switch): IGBT4 HS
  • Easy paralleling
  • High speed switching
  • Low switching losses
Base isolation (e.g. ceramic): Al2O3
Electrical interconnection: Screw terminals
Module simulation data available in VincotechISE:


Housing related details

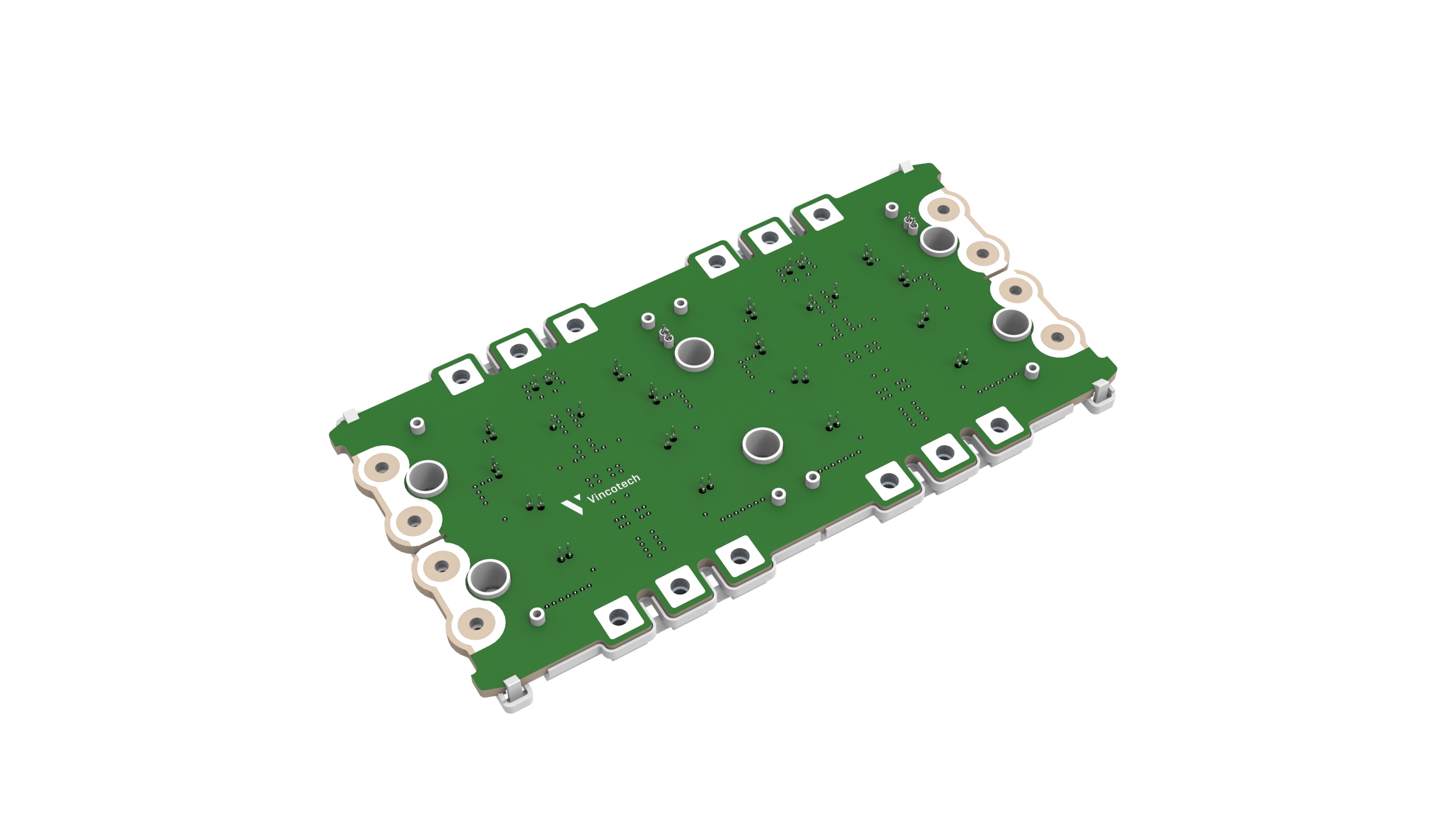

Module housing: VINco X8
Footprint: 242.5 mm x 129.2 mm
  • Easy paralleling
  • Low inductive package
  • Low inductive transient interface
  • Optimal current sharing
  • Optimized for three-level topologies
  • M4 Low Inductive Interface
  • M6 High Power Screw Contact
  • No PCB hole damage to enable reuse
  • Reliable cold welding connection to PCB
  • Thermo-mechanical push-and-pull force relief

Related documents

  • Handling instruction  PDF, 2 MB

    The handling instruction gives information during the design phase of the application and for usage in the production.
    To ensure a proper long term stability and reliability of the power module in the application details about the PCB requirements, heat sinks and thermal interface material as well as instructions on the assembly process are shown.

  • Packaging datasheet  PDF, 648 kB

    The package data gives information about dimensions of the housing.

  • 3D module outline (STEP)  STP, 12 MB

    The 3D step file can be downloaded for the implementation into your CAD system.

  • UL (Underwriters laboratories)  PDF, 309 kB

    Vincotech power modules are recognized by UL (Underwriters Laboratories). The UL Mark indicates that UL has tested representative samples of the product and found it to be compliant with the applicable standard or other requirements with respect to its potential risk of fire, electric shock and mechanical hazards.

  • RoHS  PDF, 0

    All Vincotech standard power modules comply with the RoHS specification.
