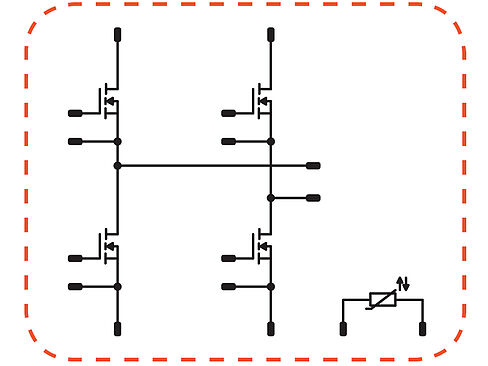

fastPACK 0 SiC - the go-to H-bridge for accelerating SMPS, charger and ESS applications

fastPACK 0 SiC
fastPACK 0 SiC with Press-fit pins
fastPACK 0 SiC: fsw up to 400 kHz
900 V / 33 A Faster, cooler and even more efficient, this new power module is the first-choice H-bridge for switching frequencies up to 400 kHz.

Featuring a 900 V SiC MOSFET, it tops 1200 V SiC MOSFETs' switching performance and has a higher safety margin than 650 V MOSFETs. On top of that, the  fastPACK 0 SiC module achieves greater efficiency than IGBTs (+8 % at a light load and +3 % at the full load).

And the  fastPACK 0 SiC H-bridge is also the perfect solution when it comes to increasing power density for SMPS, charger and ESS applications ranging 2 - 4 kW.

Main Features:

  • High frequency 900 V SiC MOS
  • fsw up to 400 kHz
  • Suitable for hard switching / soft switching
  • Built in NTC
  • flow 0 12 mm housing without clips

fastPACK 0 SiC module:

Part-No. Voltage in V Current A Technology
10-PC094PB065ME01-L637F06Y 900 33 SiC MOSFET

With the benefit of this module, more than 30 % savings can be achieved on the cost of the heat sink, magnetic components and bulk capacitors in applications with 100+ kHz switching frequencies. It also runs very efficiently at light loads to markedly increase SMPS's overall efficiency.

Samples of the new fastPACK 0 SiC may be sourced on demand from our usual channels.
