KEEP ONE STEP AHEAD



Use the new three-level modules to advance high-voltage devices

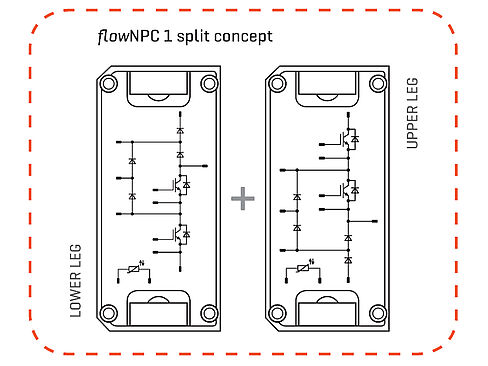

flowNPC 1 split concept up to 30 kW - 2400 V / 150 A



flowNPC 1 split
flowNPC 1 split

Vincotech will support you for the future market with the unique new flowNPC 1 split three-level solution for high voltage solar and ESS applications. Enabling four-quadrant operation, this fast module concept using two low-inductive flow 1 modules, will support you moving ahead competition. The flowNPC 1 split modules are a cost-efficient solution increasing thermal performance and preparing for future challenges.

Main benefits

  • Allows high DC-Link voltages
  • High efficiency with high speed IGBT
  • Enables full reactive power capability
  • Fast switching frequencies
  • Betters current sharing: IGBT dies paralleled in the same DCB
  • Integrated temperature sensor
  • Comes in compact, low-inductive 12 mm flow 1 housings



Features:

  • Three-level topology engineered to meet the latest technical demands
  • No cross-conduction: split output
  • Cost-efficient solution



Target applications:

  • Energy Storage Systems with DC-link voltages above 1000 VDC
  • Solar inverters with 1500 V



flowNPC 1 split - overview:



Part-No. Voltage in V Current in A Technology
10-FY24NIB150SH01-L728F08 2400 150 IGBT4 HS
10-FY24NIC150SH01-L738F08 2400 150 IGBT4 HS



Samples of the flowNPC 1 split are available on special request.
