The new flowPACK 1 SiC is faster than 1200 V SiC MOSFETs, safer than
650 V MOSFETs and perfect for charging stations that require soft-switching for LLC topology. This 3xhalf-bridge achieves the efficiency you need at nominal and at partial loads. And its increased switching frequency and power density help to reduce your overall system costs.
HIGHER POWER & PERFORMANCE IN A SPACE-SAVING PACKAGE
Main benefits:
/ Ultra fast 900 V SiC MOSFET for up to 400 kHz switching frequency
/ Hard & soft switching capability
/ Higher power density, lower system costs
Features:
/ 3xhalf-bridge
/ Open Emitter configuration
/ Kelvin Emitter for improved switching performance
/ Temperature sensor
/ Low inductive flow 1 12mm press-fit pins
/ Phase-change material available on request
/ NTC
Applications:
/ Charger
/ SMPS
/ ESS
/ Welding

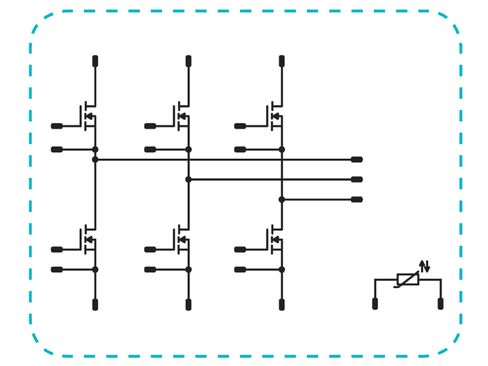

flowPACK 1 SiC schematic
flowPACK 1 SiC modules:
| Part-No. | Voltage in V | Current in A | Topology |
|---|---|---|---|
| 10-PY096PA035ME-L224F18Y | 900 | 70 | 3xHalf Bridge |
Samples of the very efficient flowPACK 1 SiC modules may be sourced on demand from our usual channels.
