Product News

GEARING UP FOR NEXT-GEN UPS



flowSPFC 0 - 650 V / 10 - 30 kW - the new power factor correction module



flowSPFC 0
flowSPFC 0

The perfect power module to gear up for the next generation in UPS is already here - Vincotech's symmetric three-phase PFC. The new flowSPFC 0's benefits are threefold: it steps up efficiency, drives down costs and enables manufacturers to make the most of next-gen UPS. Engineered to provide utmost efficiency ranging up to 99.2 % at a remarkably low price, the flowSPFC 0 helps vendors cut their overall system costs.

Main benefits

  • Provides utmost efficiency up to 99.2 % at remarkably low price
  • Slashes total system costs
  • Delivers 10 - 30 kW

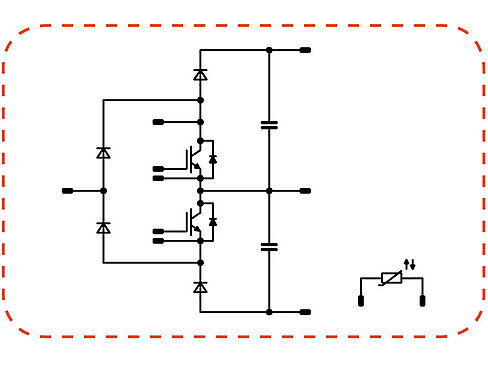

  • Offers a symmetric PFC topology for three-phase applications
  • Enables fast switching frequencies up to 75 kHz
  • Comes in compact, low-inductive 12 mm flow 0 housings

Features:

  • Three-level topology engineered to meet the latest technical demands
  • Remarkable efficiency
  • Integrated snubbing capacitors
  • Built-in NTC

flowPFC 0 CD - overview:

Part-No. Voltage in V Current in A Technology Output power
10-FZ062TA015SM-P985D13 650 15 IGBT H5 1 - 2 kW
10-FZ062TA030SM-P986D13 650 30 IGBT H5 2 - 4 kW
10-FZ062TA050SM-P987D13 650 50 IGBT H5 4 - 6 kW
Samples of the flowSPFC 0 are available on special request.
