FASTER, SMALLER, LIGHTER
The new flowBOOST 1 symmetric packaged in the low inductive flow 1 housing achieve the performance you need to downsize bulky transformers and DC link capacitors. Engineered to deliver highest switching frequencies, they can provide a symmetric boost in 1300 V or a buck boost in 650 V applications. And the latest Infineon Trenchstop™ 5 is on board to increase efficiency and cut your costs.
General features:
• Highly integrated
• Up to 25 kW power
• Fsw up to 40..50 kHz
• 650 V Infineon TRENCHSTROP™ H5 and S5 IGBTs
• Highly efficient (>99 %) at high speed and low saturation voltage
• Kelvin Emitter
• Temperature sensor (NTC)
Main benefits:
• Top speeds for smaller, lighter passive power components
• Highest efficiency at lowest price
• Optimized for solar applications and UPS

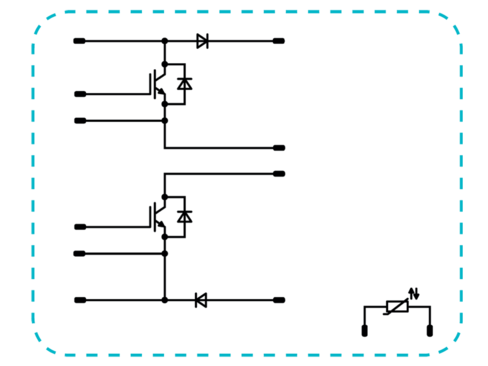

flowBOOST 1 symmetric schematic
Applications:
• Symmetric booster for 1300 V applications
• Buck-booster for 650 V applications
• UPS (charger)
• Solar
• Power supply (SMPS)
flowBOOST 1 symmetric with Infineon TRENCHSTOP™ IGBT5 overview:
| Part-No. | Voltage in V | Current in A | Technology |
|---|---|---|---|
| 10-FY07NBA100SM-M506L48 | 650 | 100 | Infineon TRENCHSTOP™ IGBT5 H5+ ultrafast diode |
| 10-FY07NBA100S5-M506L58 | 650 | 100 | Infineon TRENCHSTOP™ IGBT5 S5 + Rapid1 diode |
| 10-FY07NBA150S5-M506L98 | 650 | 150 | Infineon TRENCHSTOP™ IGBT5 S5 + Rapid1 diode |
Samples of the ultra efficient booster modules flowBOOST 1 symmetric may be sourced on demand from our usual channels.
