Basic module information
|Product line:||VINcoNPC X4|
|Product status:||Series production|
|Break down voltage:||1200 V|
|Nominal chip current rating:||400 A|
|Standard Packing Quantity:||8|
|Module datasheet:||PDF, 3 MB|
|Simulation of target application:||PDF, 1 MB|

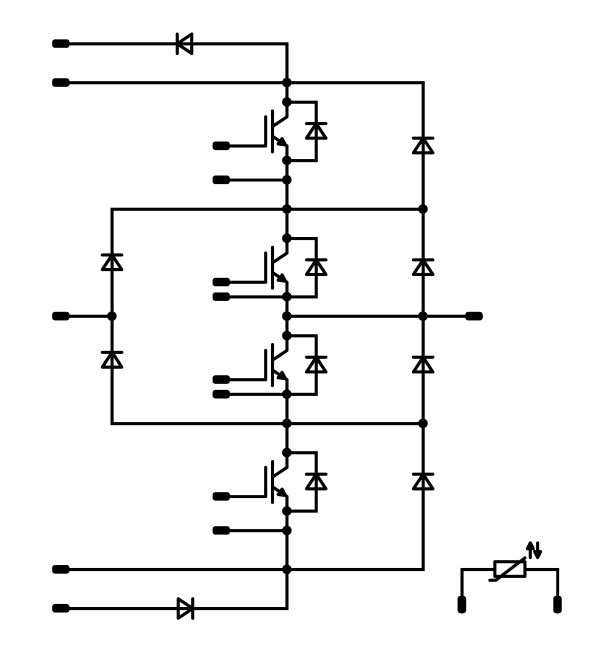

|Topology:||Three-level NPC (I-Type)|
- Neutral Point Clamped Topology (I-Type)
- Kelvin Emitter for improved switching performance
- Optional snubber diode for switching loss reduction with asymmetrical inductance feature
- Temperature sensor
|Chip technology (main switch):||IGBT4 HS|
- Easy paralleling
- High speed switching
- Low switching losses
|Base isolation (e.g. ceramic):||Al2O3|
|Electrical interconnection:||Screw terminals|
|Module simulation data available:||On demand|
Housing related details

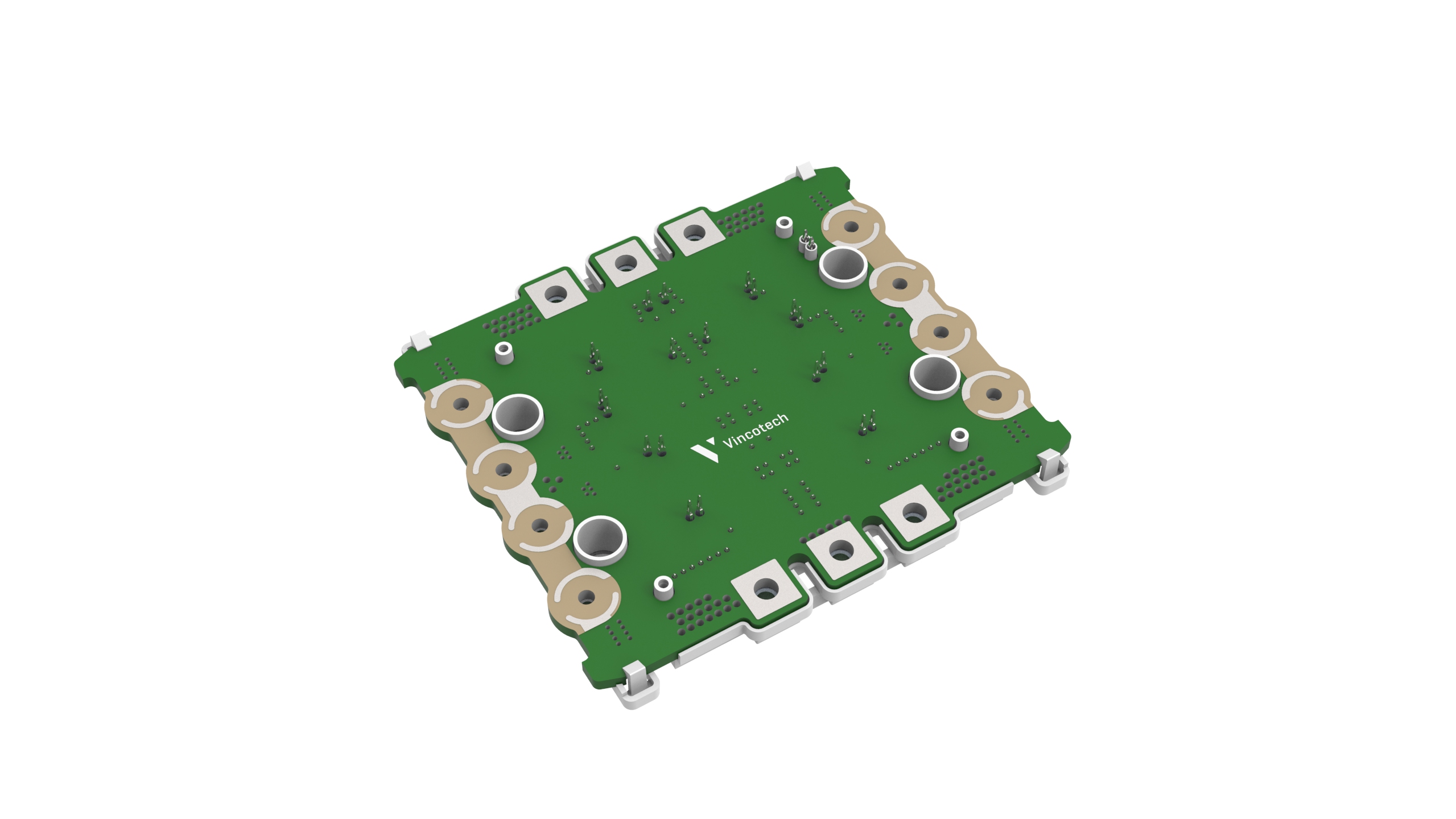

|Module housing:||VINco X4|
|Footprint:||134.8 mm x 129.2 mm|
- Optimized for three-level topologies
- Enables high switching frequencies
- Low inductive package
- Easy paralleling
- Optimal current sharing
- Thermo-mechanical push-and-pull force relief
- M6 High Power Screw Contact
- M4 Low Inductive Interface
- Press-fit connection to driver PCB
PDF, 2 MB
The handling instruction gives information during the design phase of the application and for usage in the production.
To ensure a proper long term stability and reliability of the power module in the application details about the PCB requirements, heat sinks and thermal interface material as well as instructions on the assembly process are shown.
PDF, 605 kB
The package data gives information about dimensions of the housing.
3D module outline (STEP)
STP, 7 MB
The 3D step file can be downloaded for the implementation into your CAD system.
Power module datasheet explanation
PDF, 4 MB
Explanation of measurement conditions and data sources used in Vincotech’s power module datasheets.
Product Qualification at Vincotech
PDF, 293 kB
Vincotech’s qualification tests follow the minimum requirements for the series release of power modules described in this document. These tests also apply for release and re-qualification of modified products.
