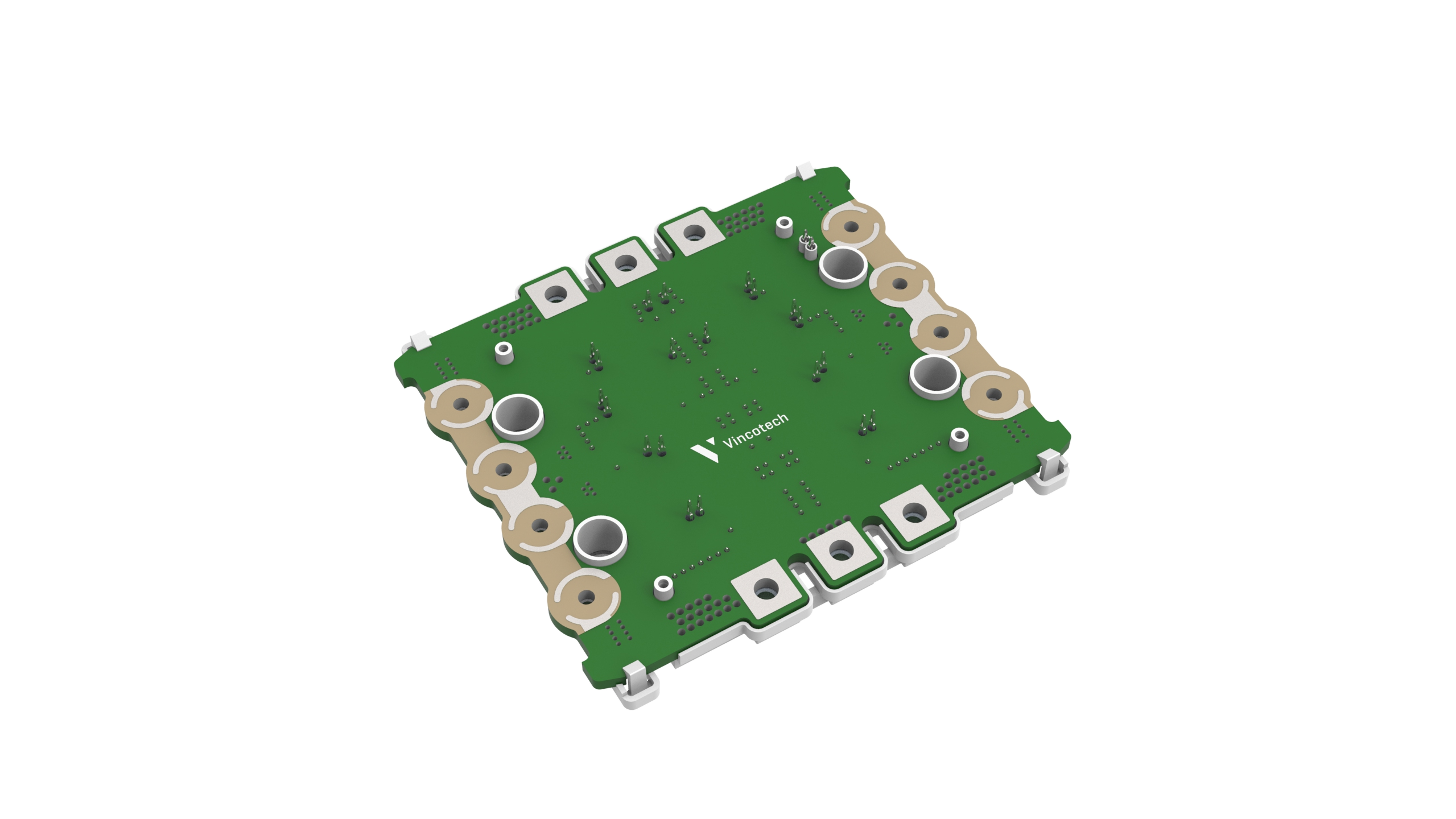

VINcoNPC X4

基本信息

• 产品线: VINcoNPC X4
• 产品状态: Phase Out
• 标准包装数量: 8

电气特性

• 电压: 1200 V
• 电流: 400 A

Three-level NPC (I-Type)

• Neutral Point Clamped Topology (I-Type)
• Kelvin Emitter for improved switching performance
• Optional snubber diode for switching loss reduction with asymmetrical inductance feature
• Temperature sensor

芯片与隔离特性

IGBT4 HS

• Easy paralleling
• High speed switching
• Low switching losses

隔离

• 基础隔离: Al₂O₃

机械与封装特性

VINco X4

• 封装尺寸: 134.8 mm x 129.2 mm
• 引脚类型: Screw terminals
